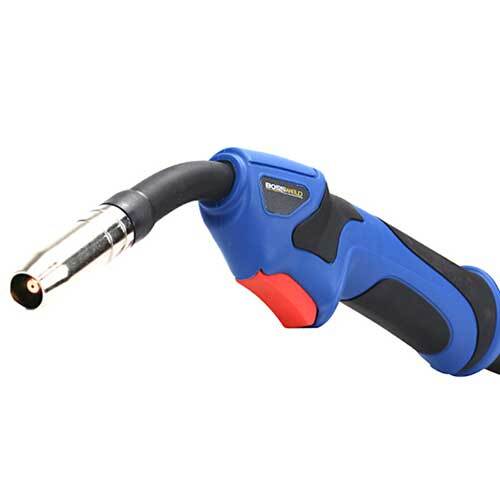

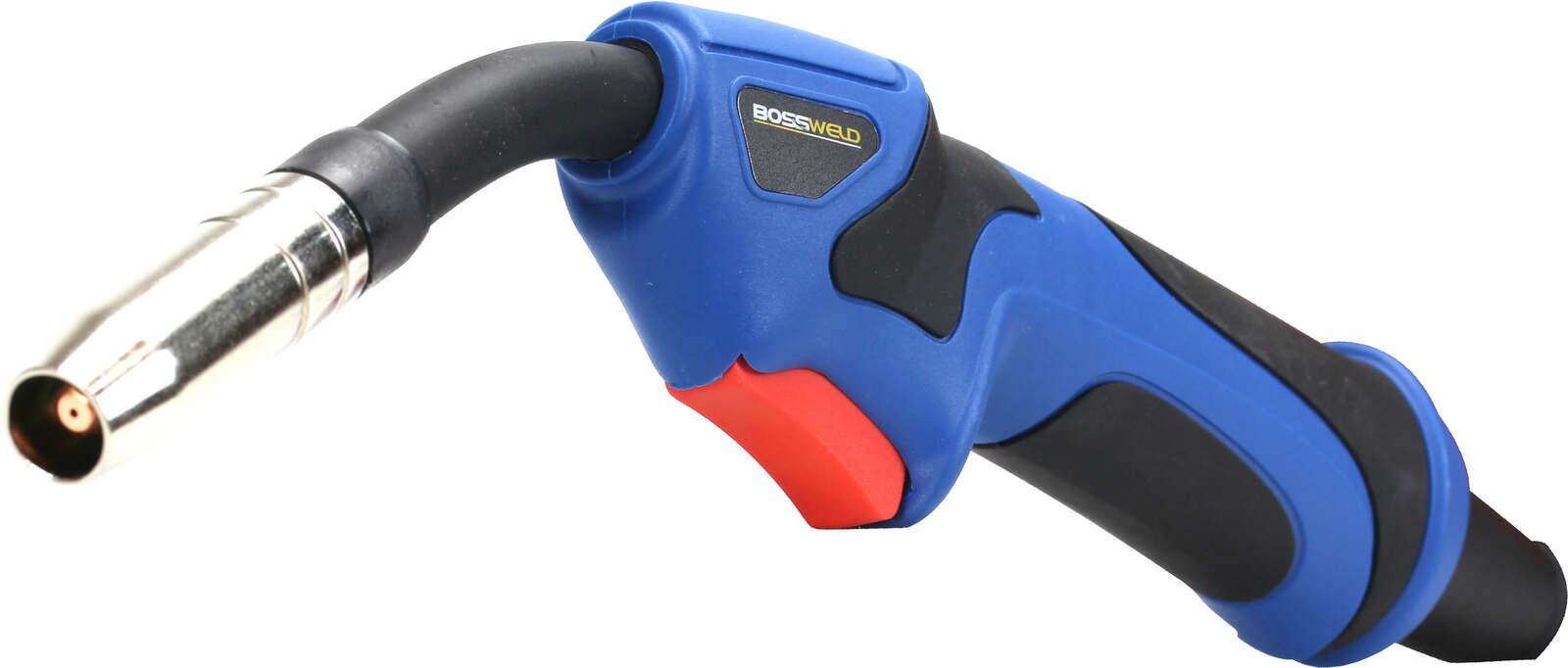

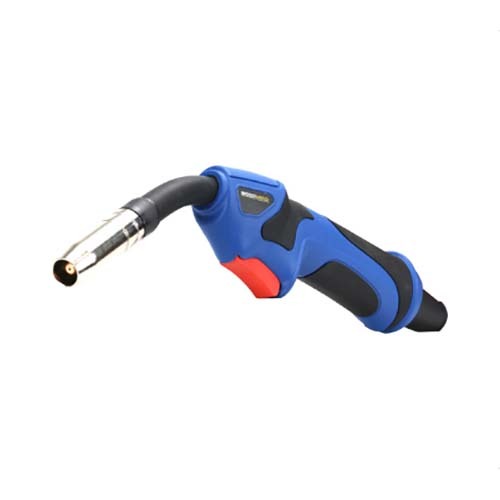

Bossweld Binzel Style BZ15 Complete MIG Torch Ergon 3 m | 92.ER.15.3

The Bossweld Binzel Style BZ15 Complete MIG Torch Ergon is an air-cooled Binzel 15 style torch with a Euro connection, available with a 3 m, 4 m or 5 m cable. The supplier rates it at 180 A with CO2 and 150 A with mixed gas at a 60% duty cycle, which makes it a medium-duty torch.

The air-cooled design supports continuous welding within its rating. A complete MIG torch connects the wire feeder to the arc. It carries the welding current, shielding gas and wire, and the amp rating is quoted at a duty cycle: a rating at 60% duty means the torch can weld at that current for 6 minutes in every 10 before it needs to cool.

Where this product is used

• MIG welding of steel and stainless steel in workshops and on site
• Production and fabrication welding
• Replacing a worn or damaged torch on an existing machine

Features

• Binzel 15 style MIG torch
• Length: 3 to 5 m
• Connection: Euro
• Cooling: Air-cooled

Key specifications

Selecting the right option

Choose the torch by the current you weld at, the cable length you need and the connection your machine takes. A longer cable gives more reach but a heavier, stiffer lead, and the connection (Euro or bayonet) has to match your wire feeder. Pick the torch style that matches the consumables you already stock, so tips, nozzles and diffusers stay interchangeable. If you are unsure which torch suits your machine, contact AIMS with the machine model before ordering.
