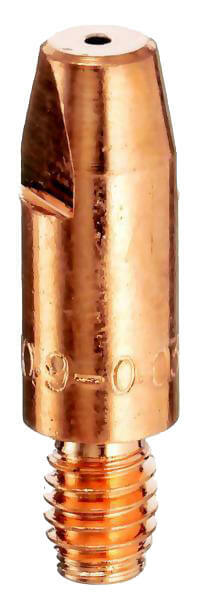

Bossweld binzel Style Heavy Duty Contact Tips, 0.8mm

Bossweld Binzel Style Heavy Duty Contact Tips M6 x 28mm fit Binzel style MIG torches that take M6 x 28mm tips. They are supplied in 0.8, 0.9 and 1.2mm bores, and each pack holds 10 tips. Tip dimensions: M6 thread, 8mm body diameter and 28mm long.

This is a Heavy Duty tip, intended for demanding industrial MIG welding where a standard tip wears out quickly.

Where this product is used

• Higher-current MIG welding on thicker steel
• Production and structural fabrication where tips see long arc-on times
• Replacing worn standard tips with a more robust option

Features

• Heavy Duty contact tips for Binzel style MIG torches that take M6 x 28mm tips
• Bore sizes: 0.8, 0.9 and 1.2mm
• M6 thread, 8mm body diameter and 28mm long
• Supplied in packs of 10

Key specifications

Choosing the right option

Match the bore to your wire diameter: a 1.2mm wire needs a 1.2mm tip. Check the thread and length against the tip you are replacing, because tips from different torch styles can look alike but will not interchange. Replace tips when the bore wears oversize, the arc becomes unstable or the wire starts to stick.

Matching parts for the same torch style: Bossweld Binzel 15 Style Bakelite Gasless Nozzle (Pack of 2), Bossweld Binzel Style Swan Neck, BZ15, BZ25 and BZ501, Bossweld Binzel Style Red Steel Liner 0.9 to 1.2mm x 3 m, Bossweld Binzel Style BZ15 Complete MIG Torch Ergon, 3 to 5 m.
