Bossweld binzel Style Contact Tips, 0.8mm
The price shown is for the pack.
Available

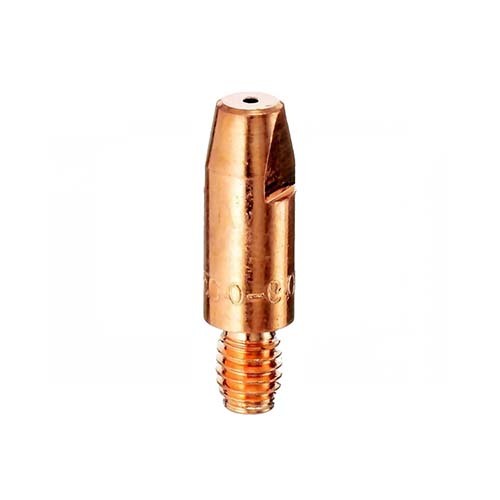

Bossweld Binzel Style Contact Tips M10 x 40mm Fronius-Type fit Fronius-type MIG torches. They are supplied in 0.8, 0.9, 1.0, 1.2 and 1.4mm bores, and each pack holds 10 tips. Tip dimensions: M10 thread and 40mm long.
The M10 thread and 40mm length make this a long tip. It is a different size from the M6 and M8 Binzel-style tips, so match it to your existing tip before ordering.
Where this product is used
- MIG welding with Fronius-type torches
- Welding in joints that need extra reach at the front end
- Routine replacement of worn long tips
Features
- Long Fronius-type contact tips for Fronius-type MIG torches
- Bore sizes: 0.8, 0.9, 1.0, 1.2 and 1.4mm
- M10 thread and 40mm long
- Supplied in packs of 10
Key specifications
| Specification | Detail |
|---|---|
| Brand | Bossweld |
| Product type | Contact Tip |
Choosing the right option
Match the bore to your wire diameter: a 1.2mm wire needs a 1.2mm tip. Check the thread and length against the tip you are replacing, because tips from different torch styles can look alike but will not interchange. Replace tips when the bore wears oversize, the arc becomes unstable or the wire starts to stick.
Matching parts for the same torch style: Bossweld Binzel 15 Style Bakelite Gasless Nozzle (Pack of 2), Bossweld Binzel 24 Style Gas Diffuser, Ceramic (Pack of 2), Bossweld Binzel 24 Style Tip Holder M6 (Pack of 2), Bossweld Binzel 501 Style Swan Neck, Water-Cooled.
| Wire size | Part number | Pack |
|---|---|---|
| 0.8mm | 92.01.M104008 | 10 |
| 0.9mm | 92.01.M104009 | 10 |
| 1.0mm | 92.01.M104010 | 10 |
| 1.2mm | 92.01.M104012 | 10 |
| 1.4mm | 92.01.M104014 | 10 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Bossweld Binzel Style Contact Tips M10 x 40 mm Fronius-Type (Pack of 10): 0.8 mm
SKU: A0148997 | Model: 92.01.M104008
Bossweld 92.01.M104008: binzel Style Contact Tips, 0.8mm. Wire Size: 0.8mm. Pack Quantity: 10.
