Bossweld binzel Style Teflon Liner, 0.6mm-0.9mm / 3 m
Available

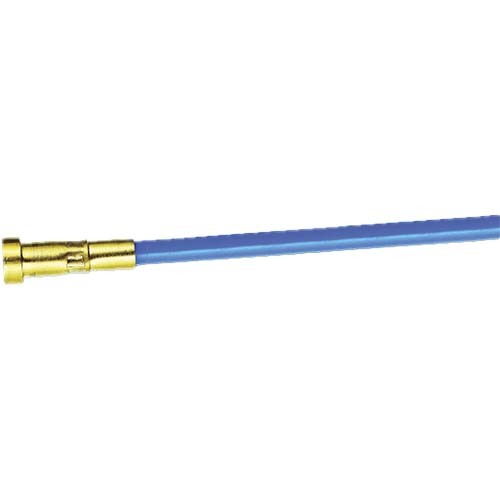

Bossweld Binzel Style Teflon Liner, Blue and Yellow, 3 m and 4 m fit Binzel style MIG torches. The blue liner covers 0.6 to 0.9mm wire and the yellow liner covers 1.2 to 1.6mm wire, each in 3 m and 4 m lengths, for aluminium and other soft wires.
The liner guides the welding wire from the drive rollers to the contact tip. A clean liner of the right bore feeds wire smoothly, while a worn, dirty or wrongly sized liner causes erratic feeding, bird-nesting and burn-back. Teflon (PTFE) liners suit aluminium and other soft wires, where a low-friction bore helps the wire feed without sticking.
Where this product is used
- MIG welding with aluminium and other soft wire
- Replacing a worn, kinked or dirty liner that is causing feed problems
- Fitting a liner of a different bore or length to suit a change of wire
Features
- Teflon liner for Binzel style MIG torches
- Wire sizes: 0.6 to 0.9mm and 1.2 to 1.6mm
- Length: 3 m and 4 m
- Colour-coded: blue and yellow
Key specifications
| Specification | Detail |
|---|---|
| Brand | Bossweld |
| Product type | Torch Liner |
Choosing the right option
Pick the liner to match your wire: the bore range has to include your wire diameter, and the material has to suit the wire (steel for steel and stainless, Teflon for aluminium and soft wires). Check the length against your torch cable, and cut the liner square and deburr the end when you fit it. Replace the liner whenever feeding becomes erratic, and change it along with the contact tip if you have been burning back.
Matching parts for the same torch style: Bossweld Binzel Style Contact Tips 6 x 25mm, 0.8 and 0.9mm (Pack of 10), Bossweld Binzel 15 Style Bakelite Gasless Nozzle (Pack of 2), Bossweld Binzel 24 Style Gas Diffuser, Ceramic (Pack of 2), Bossweld Binzel 24 Style Tip Holder M6 (Pack of 2).
| Option | Wire size | Length | Part number |
|---|---|---|---|
| Blue 0.6 to 0.9mm, 3 m | 0.6 to 0.9mm | 3 m | 92.04.BT3 |
| Blue 0.6 to 0.9mm, 4 m | 0.6 to 0.9mm | 4 m | 92.04.BT4 |
| Yellow 1.2 to 1.6mm, 3 m | 1.2 to 1.6mm | 3 m | 92.04.YT3 |
| Yellow 1.2 to 1.6mm, 4 m | 1.2 to 1.6mm | 4 m | 92.04.YT4 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Bossweld Binzel Style Teflon Liner, Blue and Yellow, 3 m and 4 m: 0.6 mm-0.9 mm / 3 m
SKU: A0148968 | Model: 92.04.BT3
Bossweld 92.04.BT3: binzel Style Teflon Liner, 0.6mm-0.9mm / 3 m. Torch Style: Binzel style. Liner Type: Teflon.
