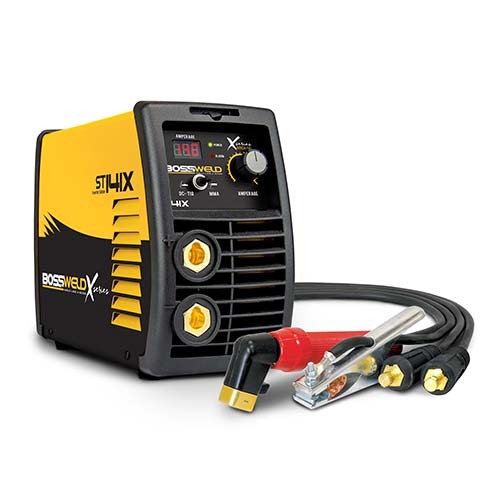

Bossweld ST 141X Stick and Lift TIG Inverter Welder 240 V 10 A
Available
The Bossweld ST 141X is a highly portable IGBT inverter welder for stick (MMA) and DC Lift TIG welding, with precise digital control. It runs from a standard 240V, 10 An outlet through the fitted plug.
It suits workshop, farm and site welding on mild and stainless steel, and it can be run from a generator.
Where this product is used
- Workshop welding
- Farm and site welding
- Maintenance and fabrication
Features
- 140 A DC stick and DC TIG welder
- Fitted 10 A plug
- IGBT inverter technology
- Digital LED display with stepless amperage control
- DC TIG lift arc start
- Voltage Reduction Device (VRD) for operator safety
- 35/50 Dinse output connectors
- Generator safe
- Lightweight and portable
Key specifications
| Specification | Detail |
|---|---|
| Brand | Bossweld |
| Processes | DC stick (MMA) and DC Lift TIG |
| Input power | 240V single phase, 50 to 60 Hz, 10 A plug fitted |
| Output current range | 16 to 140 A |
| Duty cycle | 10% at 140 A (stick), 20% at 140 A (TIG) |
| Open circuit voltage | 68V |
| Electrode diameters | 1.6 to 3.2mm |
| Suits | Mild and stainless steel |
| Protection class | IP21S |
| Part number | 691141 |
Supplied with
- ST 141X DC inverter welder
- Twistlock electrode holder, 3 m
- Earth clamp, 200 A, 2.5 m
- Carry strap
- Operator manual
Choosing the right option
Check the input supply, the output you need and the processes you weld with before you choose.
See also: Bossweld ST 141X Stick and Lift TIG Inverter Welder Bundle 240V, Bossweld ST 181X Stick and Lift TIG Inverter Welder 240V 15 A, Bossweld Buddy Arc 145 Stick and Lift TIG Inverter Welder 240V 10 A.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Bossweld ST 141X Stick and Lift TIG Inverter Welder 240 V 10 A
SKU: A0122115 | Model: 691141
Bossweld 691141: ST 141X stick and Lift TIG welder. Suits: Stick and Lift TIG welding. Output: 16 to 140 A.
