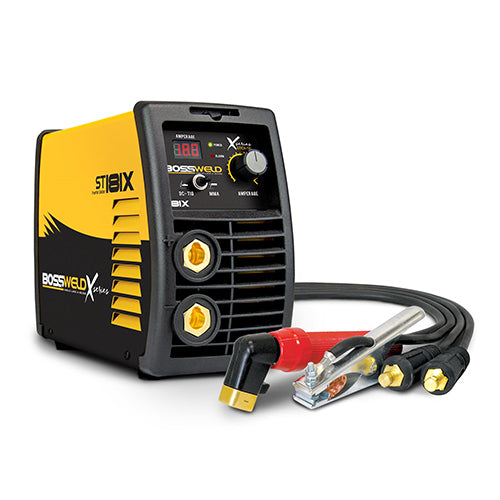

Bossweld ST 181X Stick and Lift TIG Inverter Welder 240 V 15 A
Available
The Bossweld ST 181X is a high-performance IGBT inverter welder for stick (MMA) and DC Lift TIG welding. It delivers a 180 An output from a standard 240V, 15 An outlet through the fitted plug.
Stepless digital adjustment, real-time monitoring and a Voltage Reduction Device (VRD) suit workshop, site and maintenance welding. It can also be run from a generator.
Where this product is used
- Workshop welding
- Site welding
- Maintenance and repair
Features
- 180 A DC stick and DC TIG welder
- Fitted 15 A plug
- IGBT inverter technology
- Digital LED display with stepless amperage control
- DC TIG lift arc start
- Voltage Reduction Device (VRD) for operator safety
- 35/50 Dinse output connectors
- Generator safe
- Lightweight and portable
Key specifications
| Specification | Detail |
|---|---|
| Brand | Bossweld |
| Processes | DC stick (MMA) and DC Lift TIG |
| Input power | 240V single phase, 50 to 60 Hz, 15 A plug fitted |
| Output current range | 16 to 180 A |
| Open circuit voltage | 68V |
| Part number | 691181 |
Supplied with
- ST 181X DC inverter welder
- Twistlock electrode holder, 3 m
- Earth clamp, 200 A, 2.5 m
- Carry strap
- Operator manual
Choosing the right option
Check the input supply, the output you need and the processes you weld with before you choose.
See also: Bossweld ST 181X Stick and Lift TIG Inverter Welder Bundle 240V, Bossweld ST 141X Stick and Lift TIG Inverter Welder 240V 10 A, Bossweld TIG 200X AC/DC Inverter Welder 240V 15 A.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Bossweld ST 181X Stick and Lift TIG Inverter Welder 240 V 15 A
SKU: A0122118 | Model: 691181
Bossweld 691181: ST 181X stick and Lift TIG welder. Suits: Stick and Lift TIG welding. Output: 16 to 180 A.
