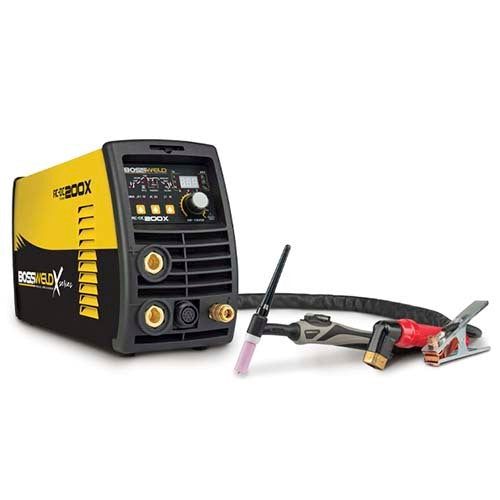

Bossweld TIG 200X AC/DC Inverter Welder 240 V 15 A
Available
The Bossweld TIG 200X is an AC/DC inverter TIG welder built on IGBT technology, with high-frequency arc start. It welds aluminium, mild steel and stainless steel, and also does DC stick.
It runs from a standard 240V, 15 An outlet through the fitted plug. You can adjust the pulse, AC balance and pre and post gas, and it is foot control ready.
Where this product is used
- TIG welding aluminium, mild steel and stainless steel
- Workshop fabrication and repair
- Precision TIG welding
Features
- 200 A AC/DC TIG welder with DC stick
- High-frequency arc start
- Fitted 15 A plug
- Adjustable pulse and AC balance
- Pre and post gas adjustment
- 2T and 4T trigger latching
- Foot control ready
- Lightweight and portable
Key specifications
| Specification | Detail |
|---|---|
| Brand | Bossweld |
| Processes | AC/DC TIG and DC stick |
| Input power | 240V single phase, 50 to 60 Hz, 15 A plug fitted |
| Output current range | TIG AC 10 to 200 A, TIG DC 10 to 170 A |
| Duty cycle | 25% at 200 A, 60% at 125 A, 100% at 100 A |
| Open circuit voltage | 52V |
| Tungsten diameters | 1.0 to 3.2mm |
| Protection class | IP21 |
| Part number | 692200 |
Supplied with
- 200X AC/DC inverter welder
- 26 Series current control TIG torch, 4 m
- Twistlock electrode holder, 3 m
- Earth clamp, 200 A, 2.5 m
- Quick connect gas hose, 2 m
- Bossweld argon flowmeter regulator
- Carry strap
- Operator manual
Choosing the right option
Check the input supply, the output you need and the processes you weld with before you choose.
See also: Bossweld TIG 200X AC/DC Foot Controller Bundle, Bossweld ST 181X Stick and Lift TIG Inverter Welder 240V 15 A, Bossweld TIG Welding Rod Aluminium Alloy 5356.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Bossweld TIG 200X AC/DC Inverter Welder 240 V 15 A
SKU: A0122128 | Model: 692200
Bossweld 692200: TIG 200X AC/DC TIG welder. Suits: AC/DC TIG welding of aluminium and steel. Output: TIG AC 10 to 200 A.
