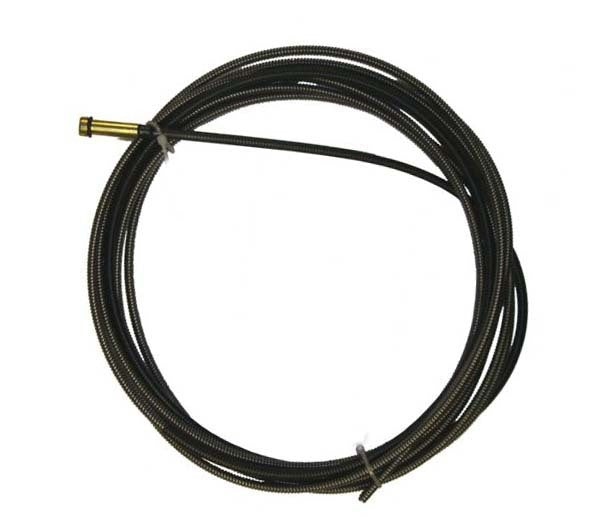

Bossweld tweco Style Steel Liner 4.6 m 91.42303515

Bossweld Tweco Style Steel Liner 4.6 m, Tweco 2 and Tweco 5 Sizes fit Tweco 2 style and Tweco 5 style MIG torches. Four 4.6 m steel liners are available: 0.6 to 0.9mm (blue) and 1.0 to 1.2mm (red) for Tweco 2 style torches, and 0.9 to 1.2mm (red) and 1.6 to 2.0mm (yellow) for Tweco 5 style torches.

The liner guides the welding wire from the drive rollers to the contact tip. A clean liner of the right bore feeds wire smoothly, while a worn, dirty or wrongly sized liner causes erratic feeding, bird-nesting and burn-back. Steel liners suit steel and stainless steel wire.

Where this product is used

• MIG welding with mild steel and stainless steel wire
• Replacing a worn, kinked or dirty liner that is causing feed problems
• Fitting a liner of a different bore or length to suit a change of wire

Features

• Steel liner for Tweco 2 style and Tweco 5 style MIG torches
• Wire sizes: 0.6 to 0.9mm, 0.9 to 1.2mm, 1.0 to 1.2mm, 1.6 to 2.0mm
• Length: 4.6 m
• Colour-coded: blue, red and yellow

Key specifications

Choosing the right option

Pick the liner to match your wire: the bore range has to include your wire diameter, and the material has to suit the wire (steel for steel and stainless, Teflon for aluminium and soft wires). Check the length against your torch cable, and cut the liner square and deburr the end when you fit it. Replace the liner whenever feeding becomes erratic, and change it along with the contact tip if you have been burning back.

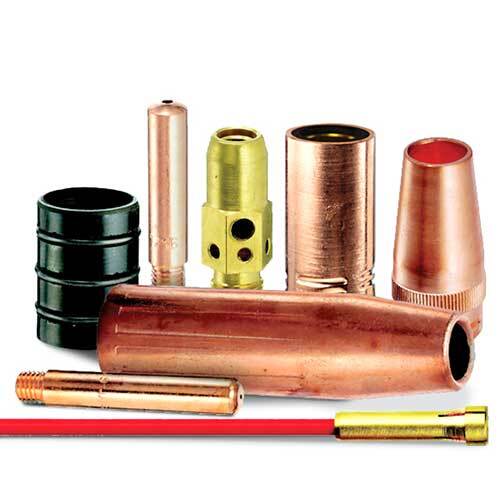

Matching parts for the same torch style: Bossweld Tweco 4 Style Aluminium Heavy Duty Contact Tips (Pack of 10), Bossweld Tweco 2 Style Gas Nozzle 13mm, Use with 32 and 52 (Pack of 2), Bossweld Tweco 2 Style Gas Diffuser for Fixed Nozzles (Pack of 2), Bossweld Tweco 2 Style Insulator (Pack of 2).
