Brady M5C-1250-427 B-427 Self-Laminating Vinyl Wrap-Around

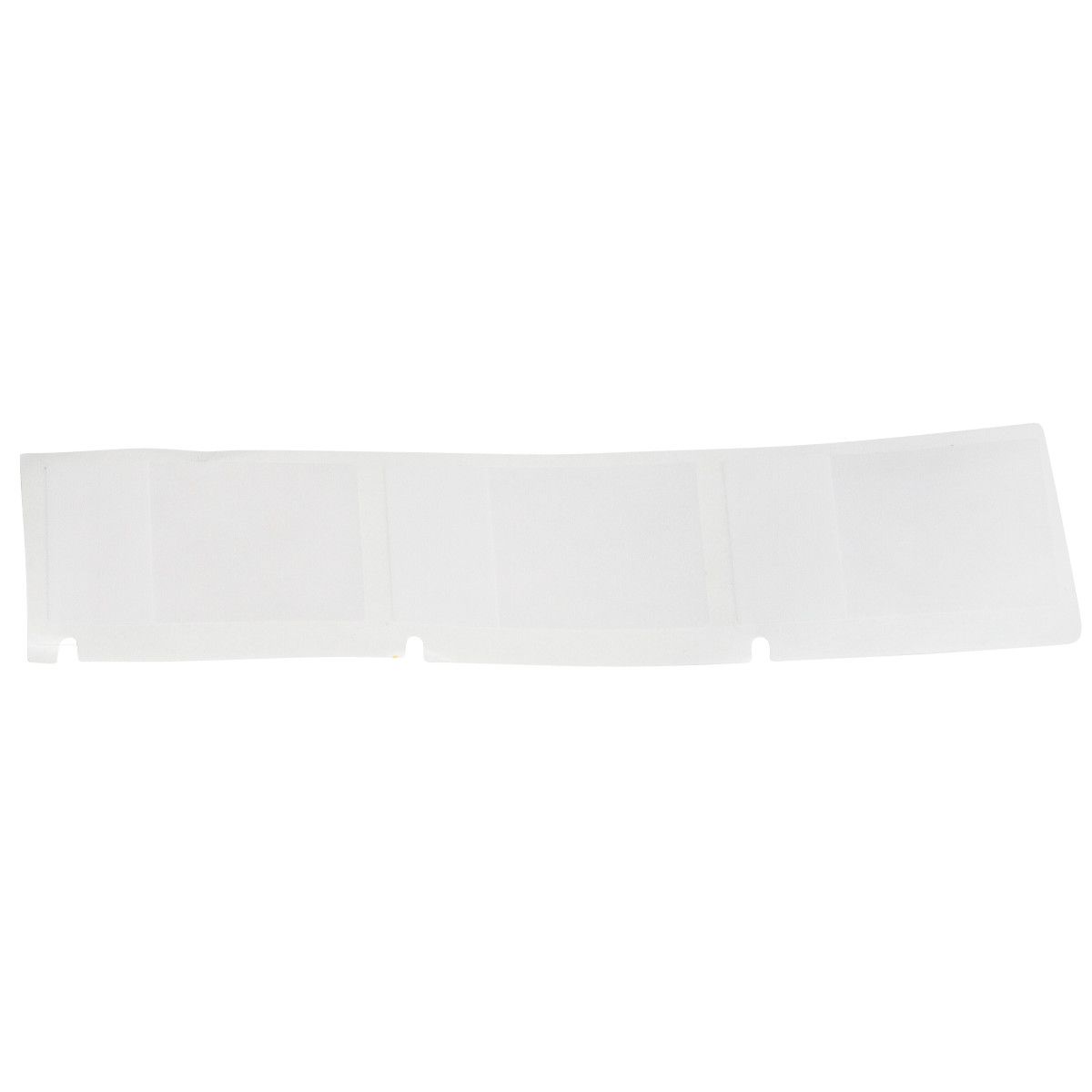

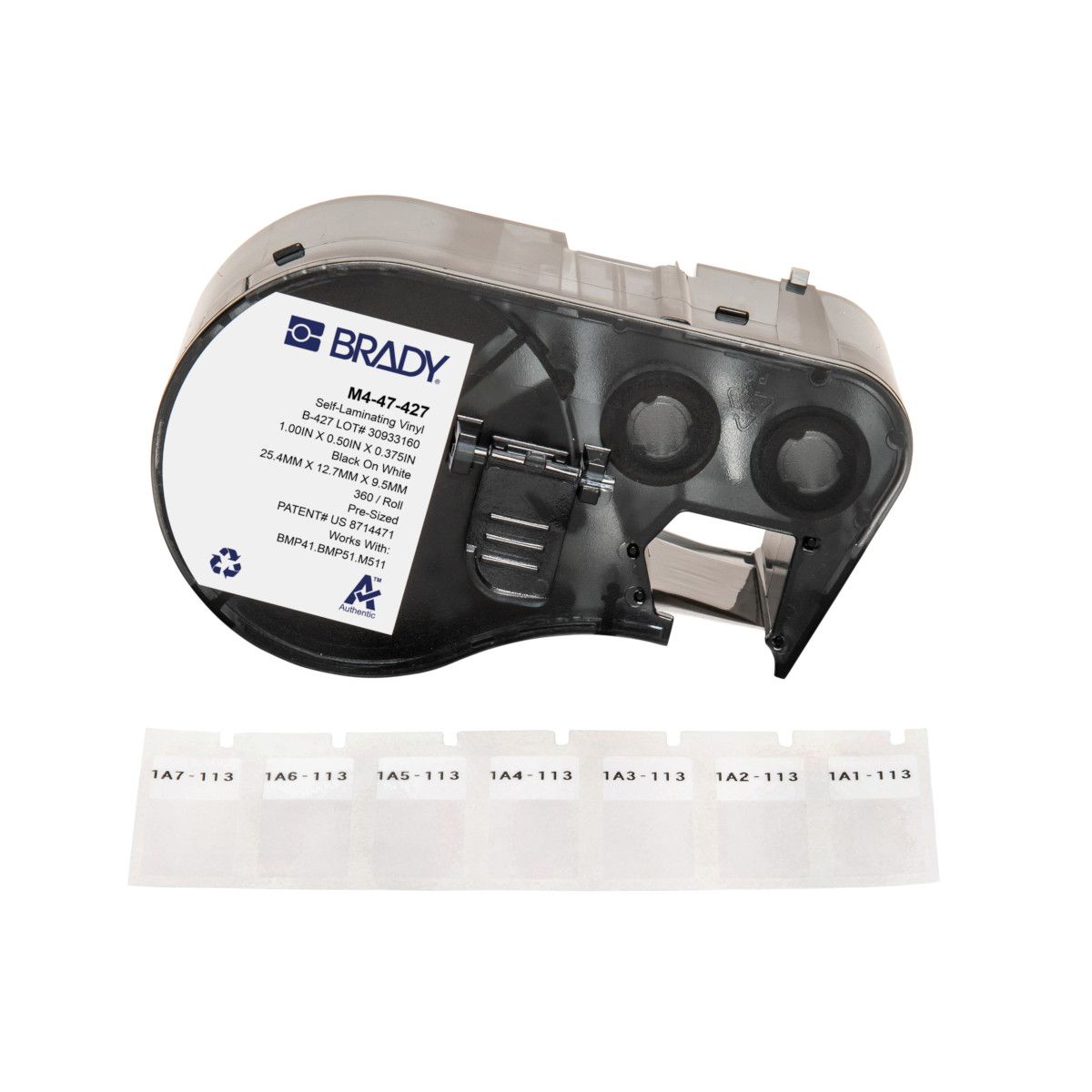

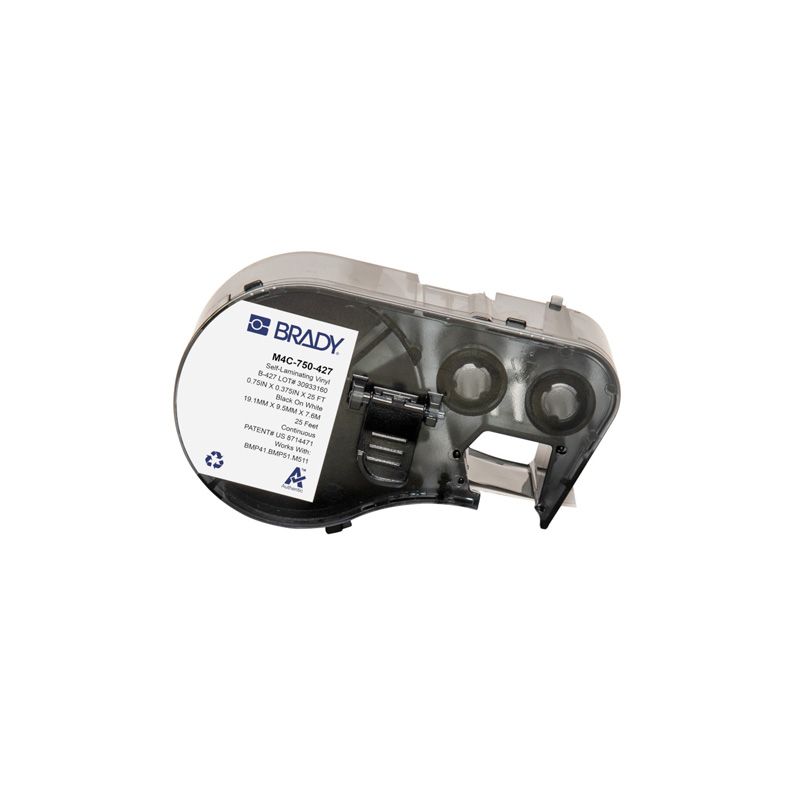

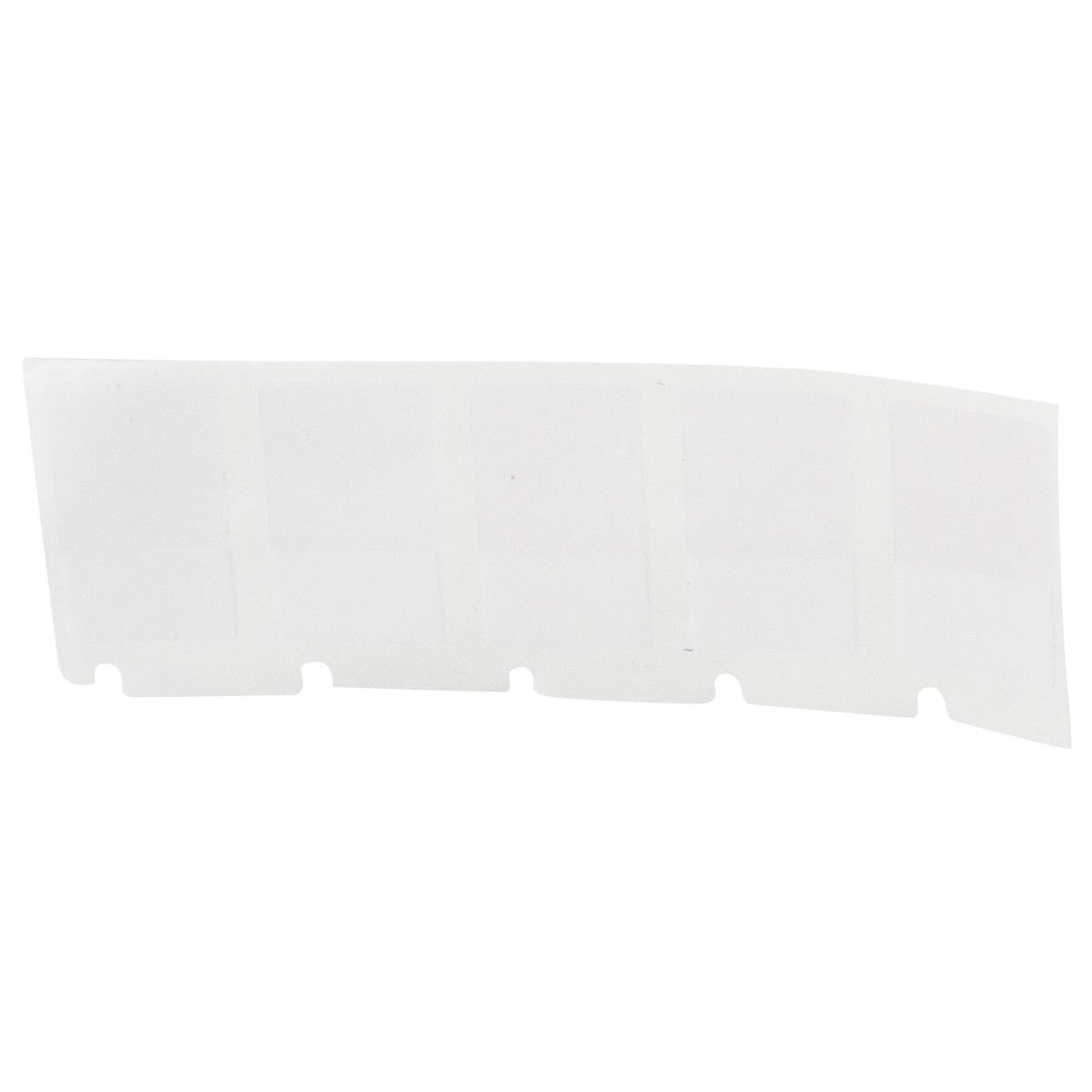

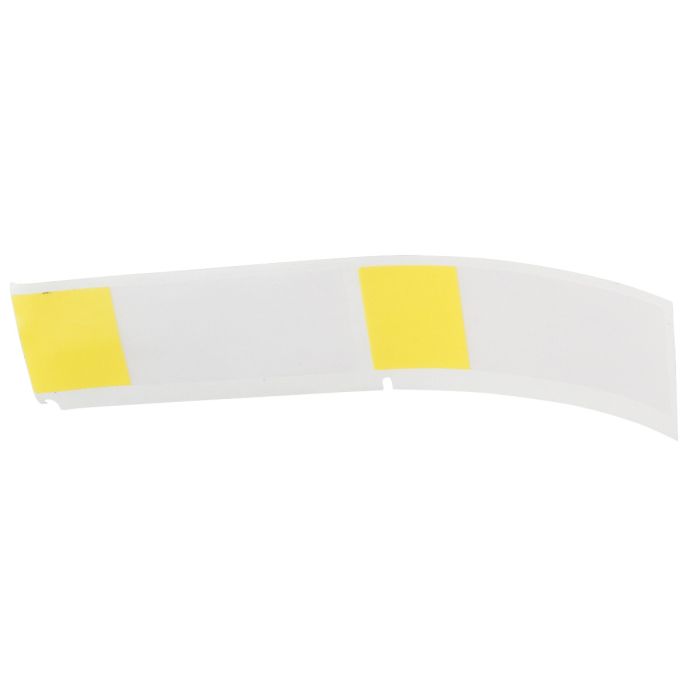

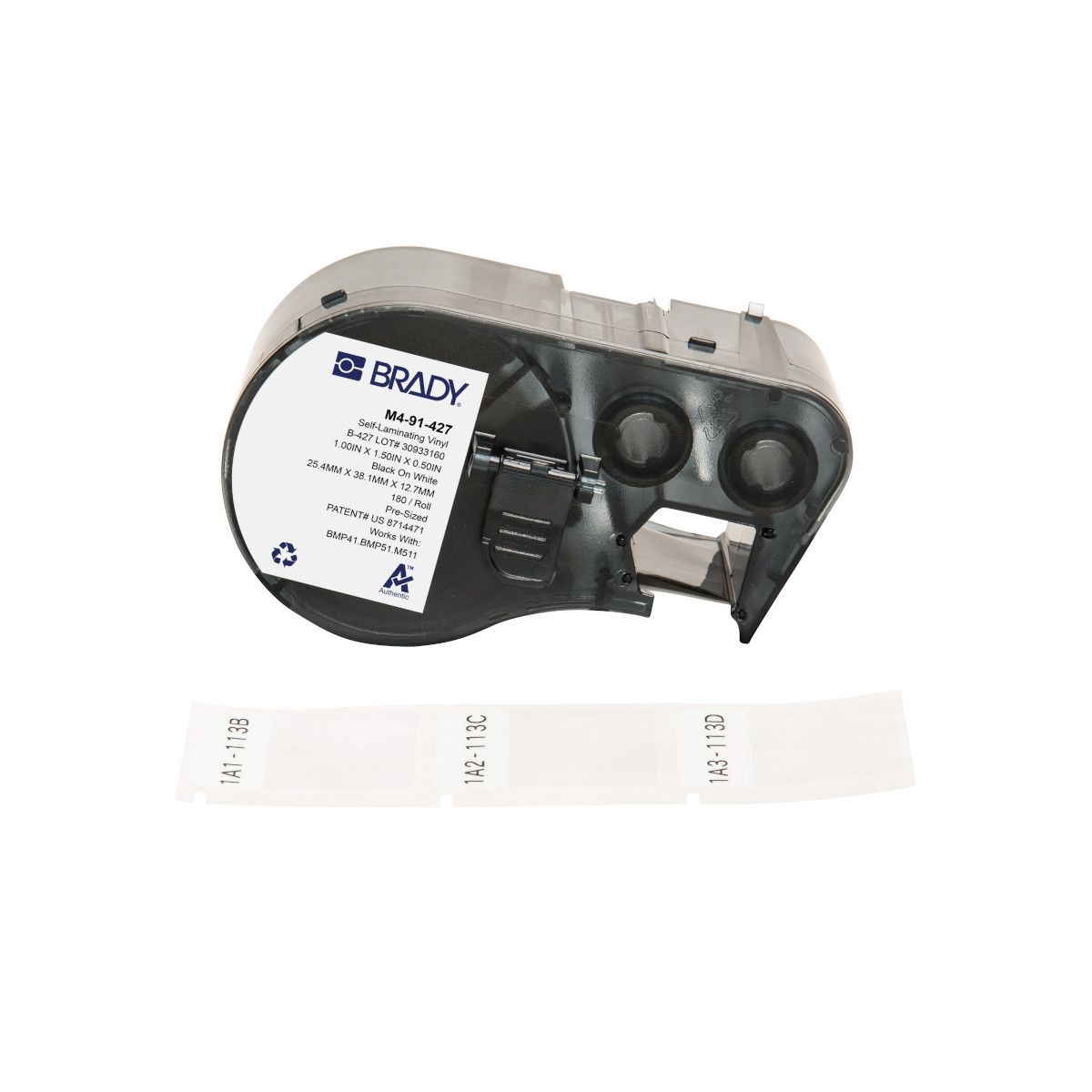

Brady B-427 self-laminating vinyl wrap-around labels are printed on a Brady M4 or M5 label printer and wrapped around a wire or cable so the clear section laminates over the print. The range has 27 cartridges: 23 die-cut label sizes from 27.94 x 6.35mm to 152.4 x 38.1mm (height x width), and four continuous wrap-around tapes 19.05, 25.4, 31.75 and 38.1mm wide x 7.62 m (25 ft). Most are black on white with a clear overlaminate; three sizes are black on yellow with a clear overlaminate.

B-427 is a flame retardant, matte vinyl with a permanent acrylic adhesive and a clear non-printable overlaminate, with a service temperature of -70 to 70 °C, chemical, humidity, oil, water and weather resistance, and outdoor use. RoHS compliant to 2011/65/EU. Choose the size by the wire it will wrap: each size has its own wire diameter range, shown in the option's specification. These parts do not contain an SVHC under REACH.

Where this product is used

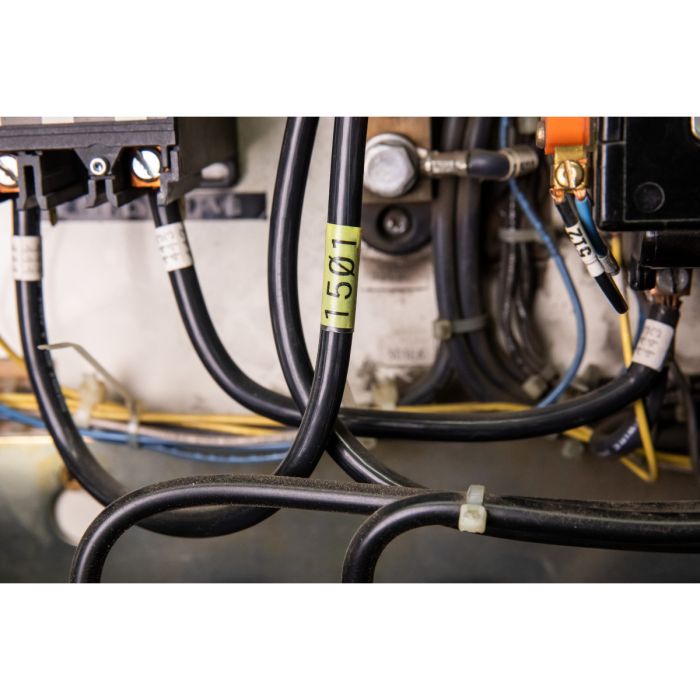

• Wire and cable identification

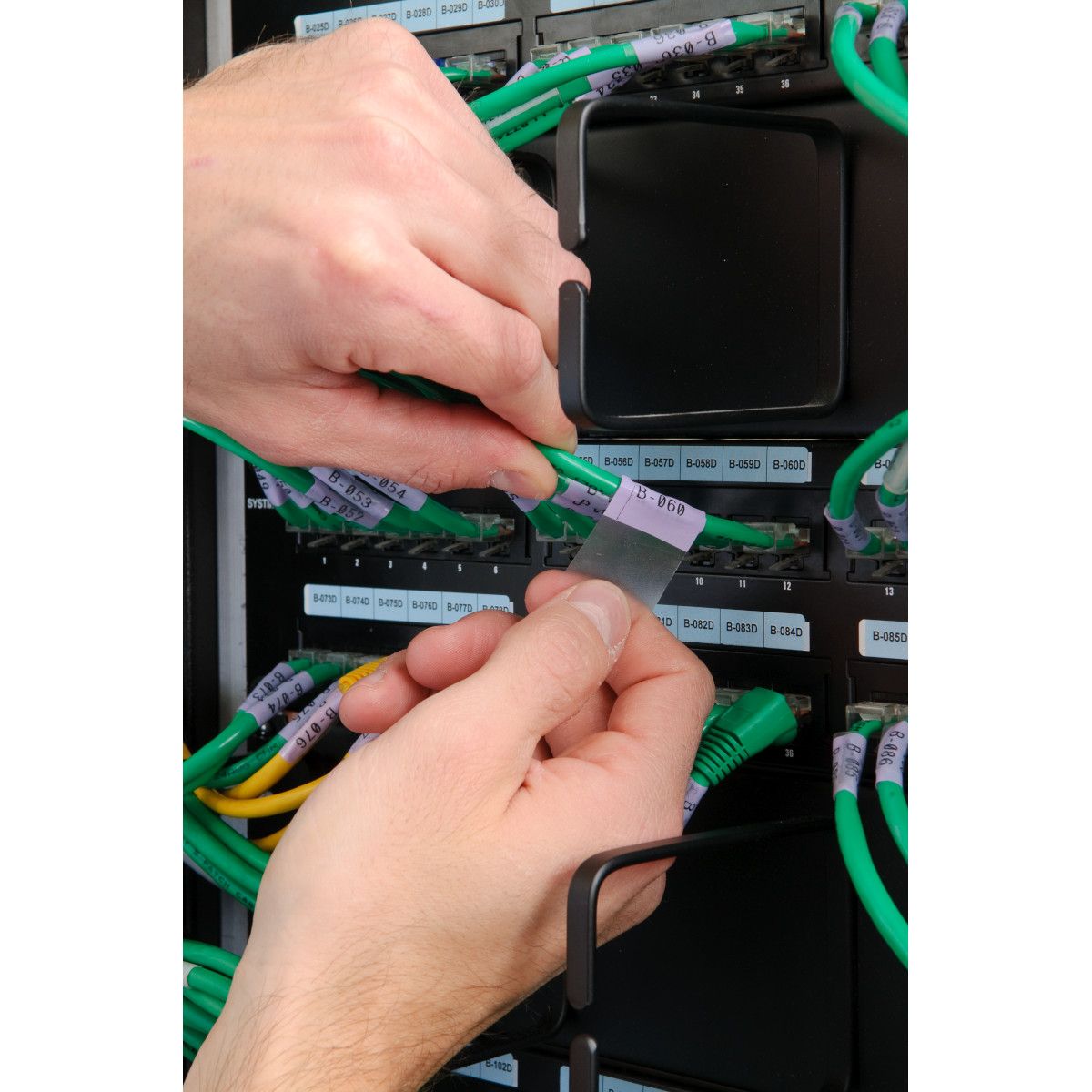

• Electrical panels, patch panels and general identification where a wrap-around label suits

Features

• Self-laminating vinyl with a clear overlaminate over the print
• Permanent acrylic adhesive, matte finish
• Service temperature -70 to 70 °C
• Chemical, humidity, oil, water and weather resistant
• 23 die-cut sizes and four continuous tapes for M4 and M5 printers

Key specifications

Choosing the right option

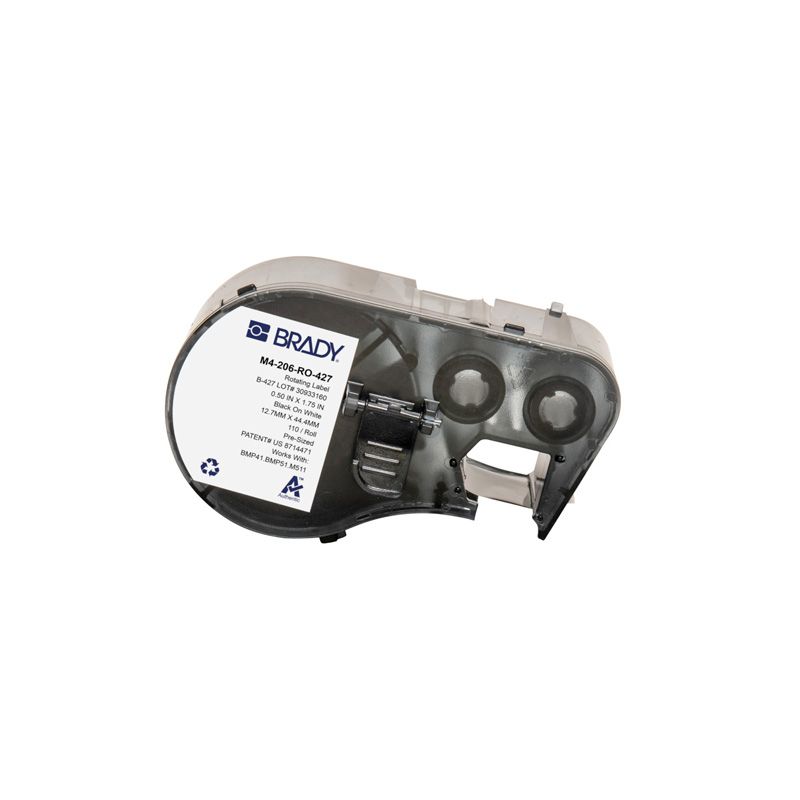

Choose the size to match the wire diameter, then the colour. For wrap-around labels that rotate see the M4 rotating wrap-around labels, and for a wire label for M7 printers see the M7 wire and cable wrap-around labels.

Related Brady products: M4 rotating wrap-around labels, M7 wire and cable wrap-around labels, M4 and M5 coloured nylon cloth labels and M4 and M5 self-laminating cryogenic polyester labels.
