Brady A62-15-427 Wraptor B-427 Self-Laminating Vinyl Wrap

Brady B-427 is a self-laminating vinyl wrap label for the Wraptor A6200 printer applicator. The range has four sizes on rolls of 500 or 850 labels: 12.7 x 19.05, 12.7 x 31.75, 25.4 x 19.05 and 25.4 x 31.75mm.

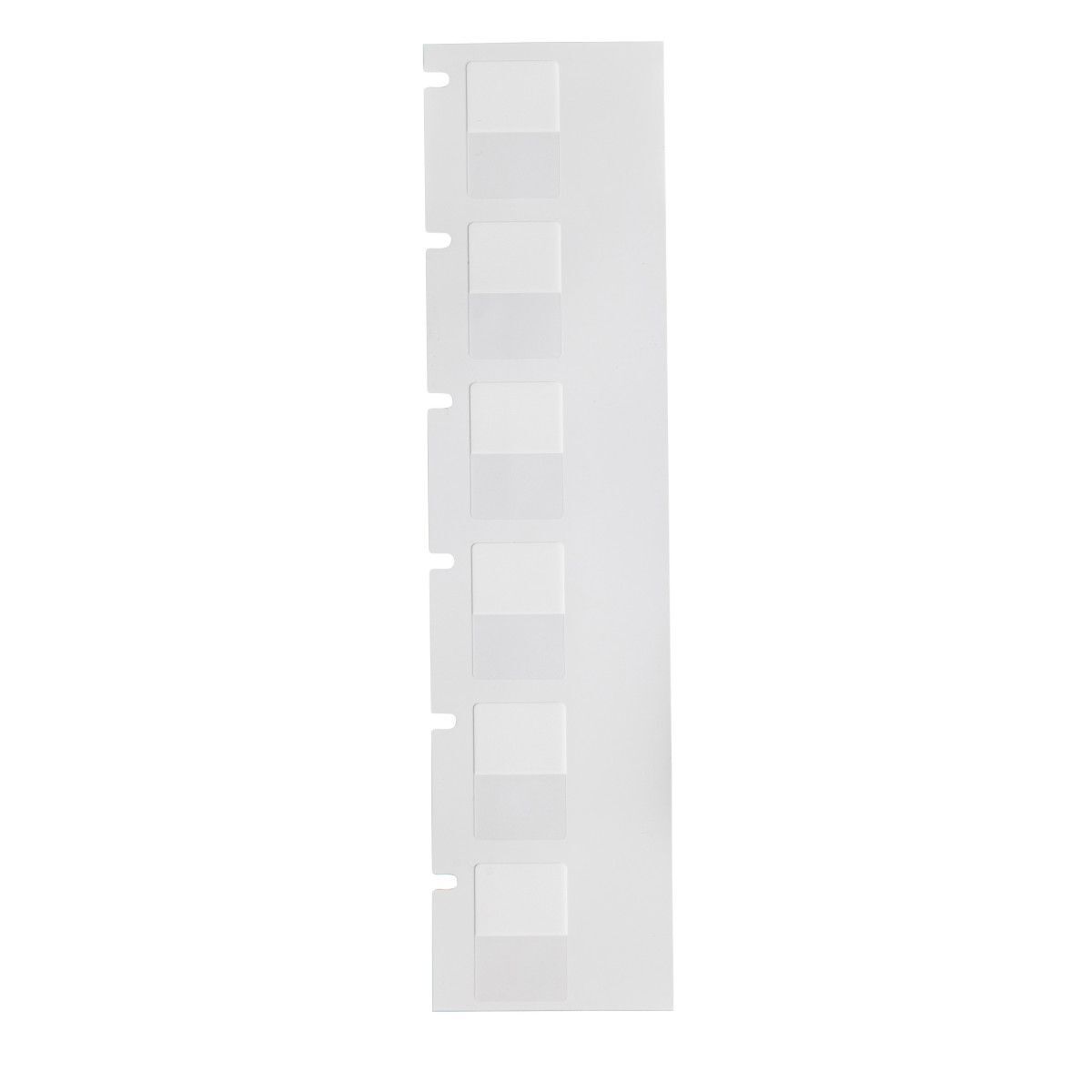

Each label has a white print area and a translucent tail that wraps around the wire to protect the text. B-427 is a matte vinyl 0.10mm (0.004") thick with a permanent acrylic adhesive that has outstanding water and oil resistance. Service temperature is -70 to 70 °C, and the material is UL approved without a file number. It is not recommended for outdoor use, so treat it as indoor stock. The 19.05mm tall labels suit wire from 22 to 12 AWG (1.52 to 3.05mm diameter) and the 31.75mm tall labels suit 16 to 6 AWG (3.05 to 6.1mm diameter). A62-R4300 is the ribbon.

Where this product is used

• Wire and cable labelling
• Electrical labelling
• Data and telecommunications labelling

Features

• Self-laminating: white print area with a translucent tail over the print
• Permanent acrylic adhesive with water and oil resistance
• Service temperature -70 to 70 °C
• UL approved (no file number given)
• Wire from 22 to 12 AWG, and 16 to 6 AWG in the taller sizes
• Four sizes, each with its own product code

Key specifications

Choosing the right option

Choose the size by the wire: the 19.05mm tall labels for 22 to 12 AWG and the 31.75mm tall labels for 16 to 6 AWG. These labels print on the Wraptor A6200 only. For an aggressive-adhesive self-laminating vinyl see the Wraptor B-417 high adhesion self-laminating wraps, and for nylon cloth see the Wraptor B-499 nylon wrap labels.

Related Brady products: Wraptor B-417 high adhesion self-laminating wraps, Wraptor B-499 nylon wrap labels and B-499 nylon labels for B33 printers.
