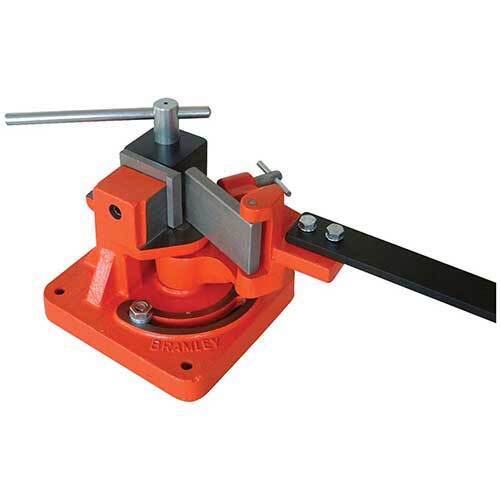

Bramley AB1 No.1 Angle Bar Bender 80 x 6 mm

The Bramley Angle Bar Bender is a solid cast iron bar bender with a swivel casting made from spheroidal graphite iron for extra strength. It has 4-position quick cam action clamping and an infinitely adjustable angle stop for bends from 0 degrees to just over 90 degrees.

A swivel bending plate adjusts against the steel being bent to achieve a sharp bending radius. It is available as the AB1 (No.1, 80 x 6 mm flat bar) and the AB2 (No.2, 100 x 8 mm flat bar). The stand is purchased separately.

Where this product is used

• Bending bar to an angle, from 0 degrees to just over 90 degrees.

Features

• 4-position quick cam action clamping
• Solid cast iron construction with a spheroidal graphite iron swivel casting for extra strength
• Infinitely adjustable angle stop for bends from 0 degrees to just over 90 degrees
• Swivel bending plate adjusts against the steel being bent for a sharp bending radius
• Stand available separately

Key specifications

Selecting the right option

Choose the model by the largest flat bar you bend: the AB1 for 80 x 6 mm and the AB2 for 100 x 8 mm. The stand is not included: order the Bramley bar bender stand (ABSTAND) separately. Contact AIMS if you are unsure which Bramley machine or attachment suits your material.

Related products

For heavier bar bending see the Bramley Pro Bender 35T.
