Bramley TBHF1 Hydraulic Tube Bender Former Set 1"
Available

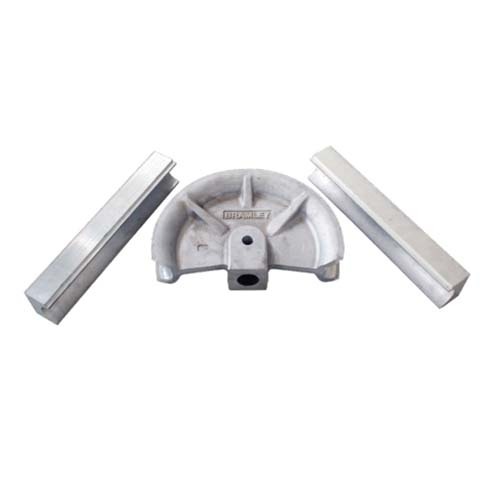

Bramley hydraulic tube bender formers are precision machined tube slippers and formers for the Bramley TBHYD and TBHYD-E hydraulic thin wall tube benders, available in nine sizes from 1 inch to 2 inch outside diameter.
The TBHYD and TBHYD-E are supplied with 1", 1 1/2" and 2" tube formers as standard, and extra former and slipper sets are sold separately.
Where this product is used
- Bending thin wall tube in sizes from 1" to 2" on a Bramley hydraulic tube bender.
Features
- Precision machined tube slippers and formers for bend quality
- Nine sizes from 1" (25.4 mm) to 2" (51 mm)
- Centreline radius of bend of 115, 140 or 165 mm depending on size
- Extra former and slipper sets for the Bramley TBHYD and TBHYD-E
Key specifications
| Model | Tube size (OD) | Centreline radius of bend |
|---|---|---|
| TBHF1 | 1" (25.4 mm) | 115 mm |
| TBHF1-1/8 | 1 1/8" (28.6 mm) | 115 mm |
| TBHF1-1/4 | 1 1/4" (31.8 mm) | 115 mm |
| TBHF1-3/8 | 1 3/8" (35 mm) | 140 mm |
| TBHF1-1/2 | 1 1/2" (38 mm) | 140 mm |
| TBHF1-5/8 | 1 5/8" (41.3 mm) | 140 mm |
| TBHF1-3/4 | 1 3/4" (44.5 mm) | 165 mm |
| TBHF1-7/8 | 1 7/8" (47.6 mm) | 165 mm |
| TBHF2 | 2" (51 mm) | 165 mm |
Selecting the right option
Choose the set by the outside diameter of the tube you are bending. Check that the tube wall thickness is within the capacity of your bender (1" to 2" O.D. and up to 2 mm wall in mild steel for the TBHYD and TBHYD-E). Contact AIMS if you are unsure which Bramley machine or attachment suits your material.
Related products
See the Bramley TBHYD hydraulic tube bender and the Bramley TBHYD-E electric hydraulic tube bender.
