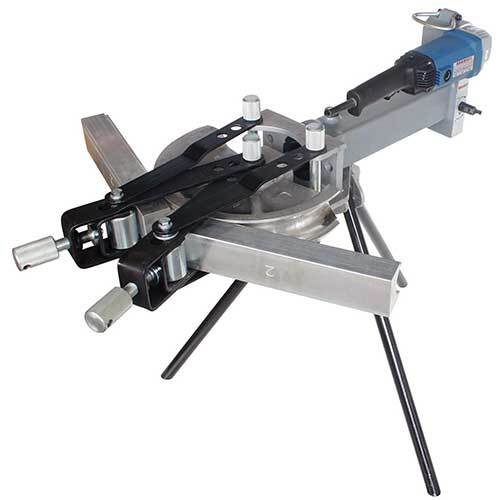

Bramley TBHYD-E Electric Hydraulic Thin Wall Tube Bender
Available
Bramley TBHYD-E is a hydraulic thin wall tube bender for 1" to 2" O.D. tube with wall thickness up to 2mm in mild steel. It makes bends up to 180°, so it suits U-bends, and it is supplied with 1", 1 1/2" and 2" tube formers as standard.
It has a compact electric hydraulic ram for ease of use and speed of operation, with precision machined tube slippers and formers for bend quality. Shipping weight is 73kg.
Where this product is used
- Bending thin wall steel tube, including U-bends
- Thin wall tube bending
Features
- 1" to 2" O.D. capacity, wall thickness up to 2mm in mild steel
- 180° maximum bend, suited to U-bends
- Compact electric hydraulic ram for ease of use and speed of operation
- Precision machined tube slippers and formers for bend quality
- Supplied with 1", 1 1/2" and 2" tube formers
- Extra former and slipper sets sold separately
Key specifications
| Specification | Detail |
|---|---|
| Brand | Bramley |
| Product type | Tube Bender |
| Model | TBHYD-E |
| Tube capacity | 1" to 2" O.D |
| Wall thickness | Up to 2mm, mild steel |
| Maximum bend | 180° |
| Ram | Electric hydraulic |
| Formers supplied | 1", 1 1/2" and 2" |
| Shipping weight | 73kg |
Choosing the right option
Check the tube diameter and wall thickness against the capacity above. The 1", 1 1/2" and 2" formers are supplied; other sizes are available as extra former sets. For the manual version see the Bramley TBHYD.
See also: Bramley hydraulic tube bender former sets.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Bramley TBHYD-E Electric Hydraulic Thin Wall Tube Bender
SKU: A0128820 | Model: TBHYD-E
Bramley A0128820: electric hydraulic tube bender. Type: Hydraulic Tube Bender. Bending Angle (degree): 180. Capacity (inch): 1 to 2.
