Bramley PB2-E Electric Hydraulic Pipe Bender 1/2" to 2" N.B.
Available

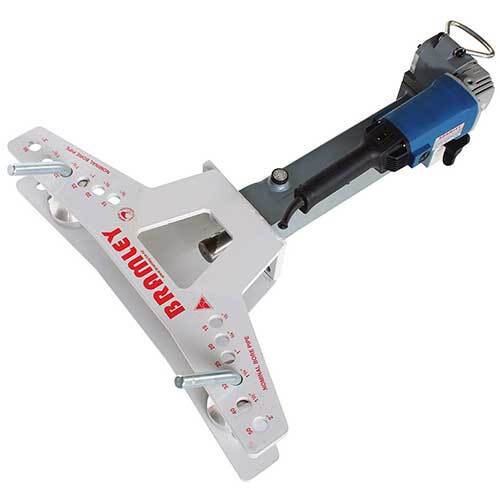

The Bramley PB2-E is an electric hydraulic pipe bender with a pipe capacity of 1/2" to 2" N.B. It has a solid frame fabrication that eliminates flexing during bending, and lightweight aluminium alloy formers with a large angle of arc to support the pipe during bending. The formers have an elliptical cross section to minimise flattening of the bend.
It comes with a Bramley electric/hydraulic ram fitted for ease of use and speed of operation. Shipping weight is 65 kg.
Where this product is used
- Bending steel pipe from 1/2" to 2" N.B.
Features
- 1/2" to 2" N.B. pipe capacity
- Elliptical section formers minimise flattening of the bend
- Lightweight aluminium alloy formers with a large angle of arc support the pipe during bending
- Solid frame fabrication eliminates flexing during bending
- Bramley electric/hydraulic ram for ease of use and speed of operation

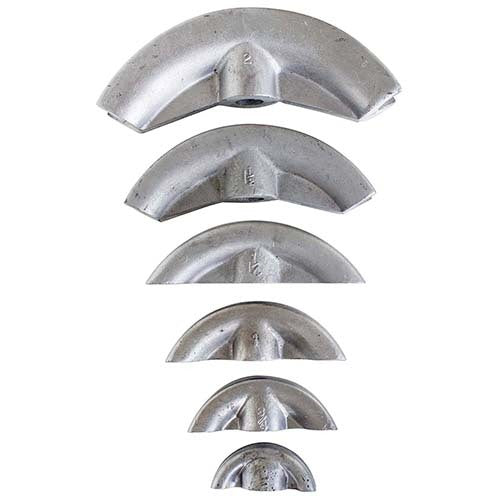

- Former sizes from 1/2" to 2" (see table)
Key specifications
| Former | Pipe size | Radius of bend |
|---|---|---|
| PBF1/2 | 1/2" | 75 mm |
| PBF3/4 | 3/4" | 105 mm |
| PBF1 | 1" | 140 mm |
| PBF1-1/4 | 1 1/4" | 175 mm |
| PBF1-1/2 | 1 1/2" | 200 mm |
| PBF2 | 2" | 240 mm |
Selecting the right option
Choose the bender by the largest pipe you bend and whether you want an electric or a hydraulic ram. Check the bend radius for each pipe size in the table, and confirm which formers are included with the machine before ordering. For the manual hydraulic version see the Bramley PB2. Contact AIMS if you are unsure which Bramley machine or attachment suits your material.
Related products
Replacement formers: the Bramley replacement pipe bender formers.
