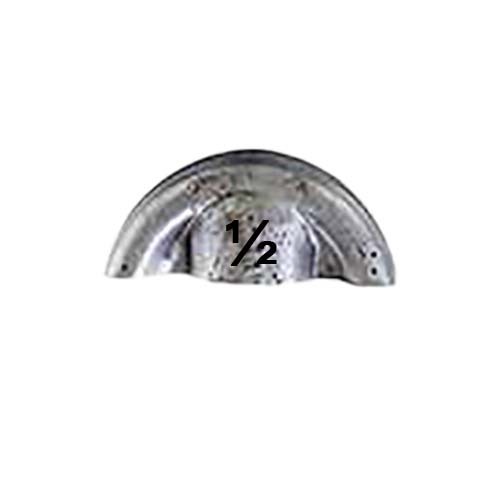

Bramley PBF1/2 Replacement Pipe Bender Former 1/2"
Available

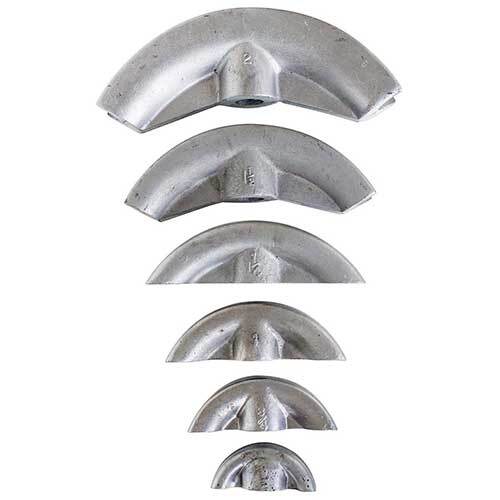

Bramley replacement pipe bender formers replace lost or damaged formers on Bramley and other brands of pipe bender. They are lightweight aluminium alloy formers of elliptical design with a large angle of arc, sized for 1/2" to 2" N.B. pipe with bend radii from 75 mm to 240 mm.
The ram spigot hole on Bramley formers is 38 mm and can be bushed to suit smaller ram diameters. When using Bramley formers on another brand of pipe bender, make sure the distance between the rollers is not too close, as this can damage the former.
Where this product is used
- Replacing lost or damaged formers on a pipe bender.
Features
- Aluminium alloy formers of elliptical design with a large angle of arc
- Sized for 1/2" to 2" N.B. pipe, bend radius 75 mm to 240 mm
- To replace lost or damaged formers on Bramley and other brands of pipe bender
- 38 mm ram spigot hole, can be bushed for smaller rams
- Check roller spacing before fitting to another brand
Key specifications
| Model | Pipe size | Radius of bend |
|---|---|---|
| PBF1/2 | 1/2" | 75 mm |
| PBF3/4 | 3/4" | 105 mm |
| PBF1 | 1" | 140 mm |
| PBF1-1/4 | 1 1/4" | 175 mm |
| PBF1-1/2 | 1 1/2" | 200 mm |
| PBF2 | 2" | 240 mm |
Selecting the right option
Choose the former by pipe size. Before fitting a Bramley former to another brand of bender, confirm the roller spacing is not too close, and check the ram spigot diameter. Contact AIMS if you are unsure which Bramley machine or attachment suits your material.
Related products
See the Bramley PB2 and PB2-E pipe benders.
