1/2" x 1-1/2" BSW Hex Set Bolt, 316 Stainless Steel - XHSA412BSWX112
The price shown is for the box.
Available

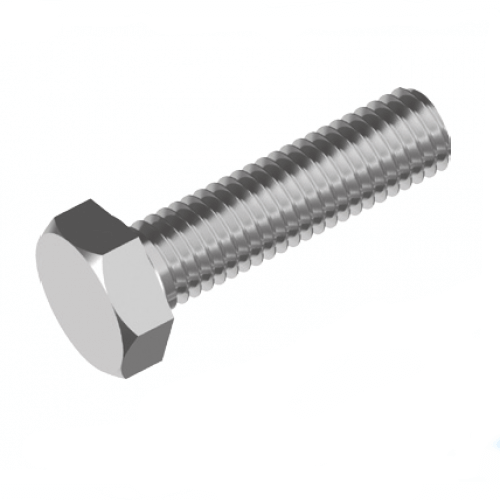

Made in 316 (A4) stainless steel, the BSW Hex Set Bolt (Full Thread) is a hex head bolt threaded along its full length (also sold as a hex set screw). The full thread lets it run right up to the head and suits tapped holes and thin joints.
You can choose from 10 variants, covering sizes 1/2" and lengths 3/4" to 4". Variants are supplied in packs of 25 to 100, depending on size.
Made from 316 (A4) stainless steel, the grade normally specified for chloride-exposed work such as coastal installations, swimming pools, marine fittings and food-processing plant. BSW (British Standard Whitworth) is an older inch-based thread found on older machinery and imported equipment. It is not interchangeable with UNC or metric threads.
Stainless threads can gall (seize) when tightened under load or at speed. A smear of anti-seize on the thread and a steady tightening speed reduce the risk.
Where this product is used
- Thin sections where a partly threaded bolt would not clamp
- Outdoor fittings exposed to salt air
- Food and beverage equipment
- Frames, guards and covers that are removed for service
- Replacement fasteners for older imported equipment
- Larger sizes for frames, plant and structural fixings
Features
- Threaded full length for tapped holes and thin joints
- Choice of 10 sizes, 1/2"
- Whitworth sizing for repairs to older equipment
- Lengths from 3/4" to 4"
- Hex head for spanner or socket tightening
- A4 (316) stainless steel with molybdenum, for coastal and chloride-exposed settings

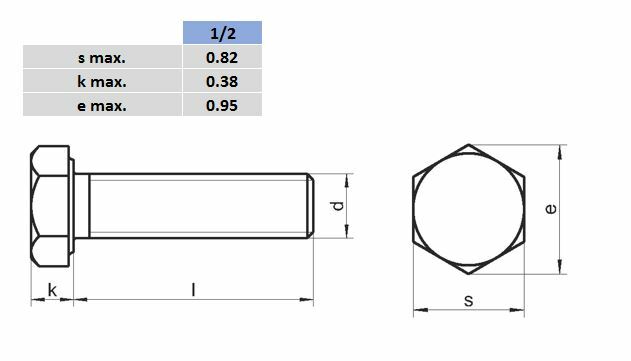

Key specifications
| Specification | Detail |
|---|---|
| Product | BSW Hex Set Bolt (Full Thread) |
| Type | Hex head bolt threaded along its full length (also sold as a hex set screw) |
| Material | A4 (316) stainless steel |
| Supplied in packs of | 25 to 100, by size |
| Environment | Coastal, marine, pool and food-processing use |
| Head type | Hex |
| Key features | Threaded full length for tapped holes and thin joints; Hex head for spanner or socket tightening |
| Fitting tip | Use anti-seize on the thread to reduce galling |
| Magnetic response | Generally non-magnetic (austenitic); cold-worked parts can show weak magnetism |
| Thread system | BSW (British Standard Whitworth) |
| Sizes | 1/2" |
| Variants | 10 |
| Length range | 3/4" to 4" |
Selecting the right option
A fully threaded bolt is the usual choice for tapped holes. Where the joint is loaded sideways, a partly threaded hex bolt keeps a plain shank in the shear plane. Use anti-seize on the thread, because stainless threads can gall when tightened.
Related products
Other versions in this range: Metric Hex Set Bolt (Full Thread) - 304 Stainless Steel, UNC Hex Set Bolt (Full Thread) - 304 Stainless Steel and Metric Hex Set Bolt (Full Thread) - 316 Stainless Steel. Matching products: BSW Standard Hex Nut - 316 Stainless Steel.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
BSW Hex Set Bolt (Full Thread) - 316 Stainless Steel: 1/2" / 1 1/2"
SKU: A0075176 | Model: XHSA412BSWX112
XHSA412BSWX112: 1/2" x 1-1/2" BSW hex set bolt, 316 Stainless Steel. Sold in a box of 50.
