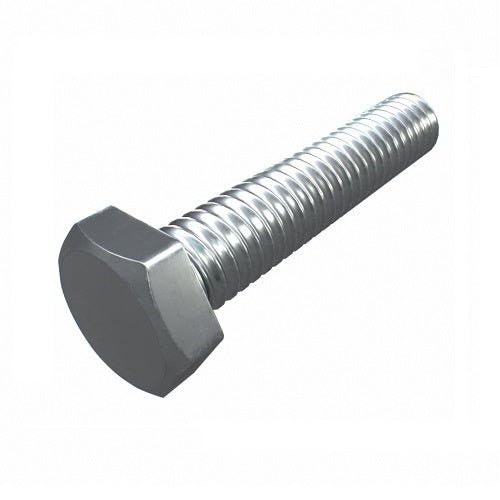

Hobson BSW Hex Set Screw, 1-1/2
The price shown is for the pack.
Available
The Hobson BSW hex set screw has a hex head and a BSW thread, and is fitted into a tapped hole or through a clearance hole with a nut (zinc plated). There are 5 items in 5/8", lengths 1-1/2" to 4". BSW means British Thread Standard Whitworth and TPI means threads per inch.
Where this product is used
- Fitted into a tapped hole, or through a clearance hole with a nut and washer, to clamp parts together
- Replacing a hex head screw of the same thread form, diameter, pitch and length
- Machinery, equipment and fabrication work where a hex head screw is called for
Features
- 5 items: 5/8"
- Zinc plated
- Length 1-1/2" to 4"
- Sizes: 5/8"
Key specifications
| Specification | Detail |
|---|---|
| Brand | Hobson |
| Sizes | 5/8" |
| Lengths | 1-1/2" to 4" |
| Thread | BSW |
| Threads per inch | 11 TPI |
| Head | Hex head |
| Finish | Zinc plated |
Choosing the right option
Choose the thread form first: the screw and the nut or tapped hole must match in thread form, diameter and pitch. Length is measured from under the head to the end of the screw.
Related items: Hobson UNC Hex Set Screw, Grade 5, Plain, 3/8" and 7/16", Hobson UNC Hex Set Screw, Grade 5, Zinc Plated, 5/16", 3/8" and 7/16" and Hobson UNC Hex Set Screw, Grade 8, Plain, 1/2" and 5/8".
| Option | Part number | SKU |
|---|---|---|
| 1-1/2 | BSMSZW0620150 | A0133135 |
| 2 | BSMSZW0620200 | A0133136 |
| 2-1/2 | BSMSZW0620250 | A0133137 |
| 3 | BSMSZW0620300 | A0133138 |
| 4 | BSMSZW0620400 | A0133139 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Hobson BSW Hex Set Screw, Zinc Plated, 5/8" x 1-1/2" to 4": 1-1/2
SKU: A0133135 | Model: BSMSZW0620150
Hobson BSMSZW0620150: 5/8" x 1-1/2" BSW hex set screw, Zinc plated. Pack of 50. Threads per inch 11 TPI.
