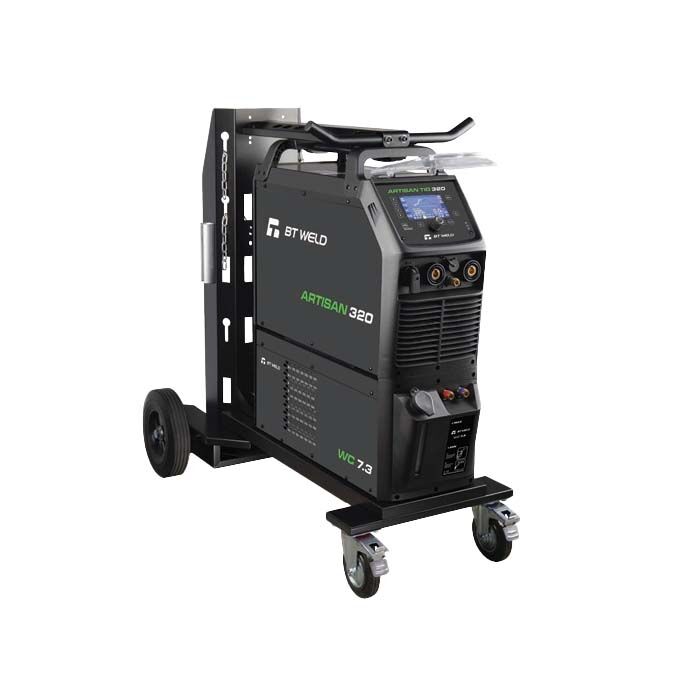

Bossweld artisan 320W water cooled AC/DC TIG welder

The BT Weld Artisan 320W is a heavy-duty, water-cooled, three-phase (415V) AC/DC pulse TIG welder with stick (MMA). It delivers up to 320 A for welding mild steel, stainless steel, brass, copper and aluminium.

A 5" colour LCD sets pulse and AC/DC waveforms. It is supplied as a workshop package with a water cooler, a 4-wheel trolley, a current-controlled water-cooled TIG torch and an argon regulator with flowmeter.

Where this product is used

• Heavy-duty fabrication
• Automotive and industrial TIG welding
• TIG welding aluminium, stainless steel, brass and copper

Features

• 320 A AC/DC pulse TIG and stick welder
• Water cooled
• 60% duty cycle at 320 A
• 5" colour LCD
• HF and lift arc DC TIG start
• Adjustable pulse and AC/DC waveforms
• 2T and 4T trigger latching
• Foot control ready

Key specifications

Supplied with

• BT Weld Artisan 320 TIG welder, 415V
• BT Weld three phase 415V water cooler
• BT Weld TR4 welder and cylinder trolley
• 18 Series water-cooled TIG torch with current control, 4 m
• Twistlock electrode holder, 4 m
• Earth clamp, 300 A, 4 m
• Argon regulator with flowmeter, 4 m
• Quick connect gas hose, 2 m
• Water cooler coolant, 5 L

Choosing the right option

This machine needs a 415V three-phase supply. The primary plug is not fitted, and it must be fitted by a licensed electrician. Check the input supply, the output you need and the processes you weld with before you choose.
