IKO NUCF10BR Cylindrical Roller Cam Follower, 10 mm stud, 22 mm OD, Shield, Crowned
Available

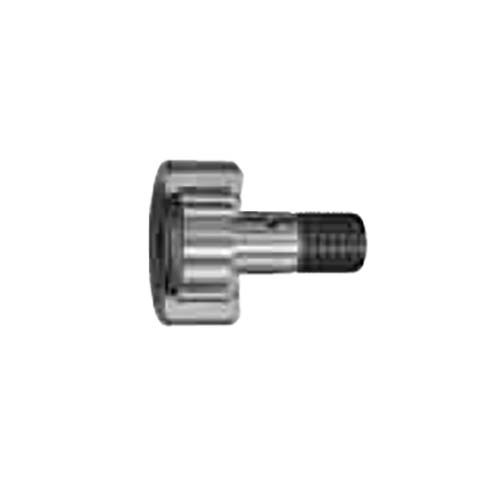

This page covers 12 IKO NUCF Series cylindrical roller cam followers (NUCF10BR to NUCF30-2BR, 10 to 30 mm stud): a hexagon hole in the stud head, full complement cylindrical rollers, shield type construction and a crowned outer ring. Choose the size in the options above; each variant has its own dimensions and ratings in the Model Details.
The NUCF series is the cylindrical roller cam follower: double rows of full complement cylindrical rollers in the outer ring take large radial loads, and the outer ring is guided axially by the outer ring shoulder and the end faces of the cylindrical rollers. A cam follower is a bearing with a stud, with cylindrical rollers inside a thick-walled outer ring. The outer ring rotates and runs directly on the mating track (cam guide surface), so cam followers suit cam mechanisms and linear motions and are used in machine tools, industrial robots, electronic devices and office automation (OA) equipment.
In the part number, the number is the stud diameter in mm; B is the hexagon hole in the stud head, and R is the crowned outer ring (no R is cylindrical). Every model on this page is shield type, full complement, crowned outer ring.
Where this product is used
- Cam mechanisms, with the outer ring running directly on the cam track
- Linear motion and follower applications
- Machine tools and industrial robots
- Electronic devices and office automation (OA) equipment
Features
- Stud type with a hexagon hole in the stud head and full complement cylindrical rollers in double rows: can withstand large radial loads
- Full complement cylindrical rollers: the outer ring is guided axially by the outer ring shoulder and the end faces of the rollers
- Shield type: narrow clearances between the outer ring and the stud flange, and between the outer ring and the side plate, form labyrinths
- Crowned outer ring (R): moderates the edge load caused by mounting errors
- Prepacked with grease
- Supplied with a nut and, on the larger studs, a grease nipple (see the Model Details for each size)
- Basic dynamic load rating C 10,400 to 90,300 N and static load rating C0 11,500 to 121,000 N (each size in the Model Details)
Key specifications
| Specification | Detail |
|---|---|
| Type | Cylindrical roller cam follower (stud type) |
| Models | NUCF10BR to NUCF30-2BR (12 sizes) |
| Stud diameter d1 | 10 to 30 mm |
| Thread G | M10 x 1.25 to M30 x 1.5 |
| Outer ring diameter D | 22 to 90 mm |
| Outer ring width C | 12 to 35 mm |
| Rolling elements | Full complement cylindrical rollers, double row in the outer ring |
| Seal | Shield type: narrow clearances between the outer ring and the stud flange, and between the outer ring and the side plate, form labyrinths |
| Outer ring | Crowned outer ring (R in the part number) |
| Stud head | Hexagon hole in the stud head (B in the part number) |
| Basic dynamic load rating C | 10,400 to 90,300 N |
| Basic static load rating C0 | 11,500 to 121,000 N |
| Maximum allowable static load | 5,300 to 98,300 N |
| Lubrication | Prepacked with grease |
| Recommended mounting hole tolerance for the stud | H7 |
| Brand | IKO (Nippon Thompson Co., Ltd., Japan) |
Available sizes

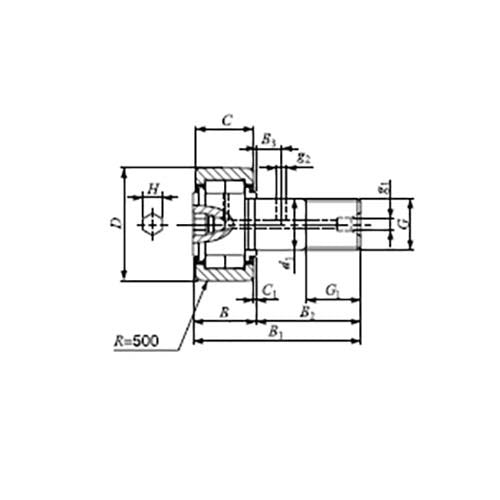

| Model | Stud d1 (mm) | Thread G | OD D (mm) | Width C (mm) | Length B1 (mm) | C (N) | C0 (N) | Mass (g) |
|---|---|---|---|---|---|---|---|---|
| NUCF10BR | 10 | M10 x 1.25 | 22 | 12 | 36.2 max | 10,400 | 11,500 | 44 |
| NUCF10-1BR | 10 | M10 x 1.25 | 26 | 12 | 36.2 max | 10,400 | 11,500 | 58 |
| NUCF12BR | 12 | M12 x 1.5 | 30 | 14 | 40.2 max | 14,000 | 13,400 | 86 |
| NUCF12-1BR | 12 | M12 x 1.5 | 32 | 14 | 40.2 max | 14,000 | 13,400 | 97 |
| NUCF16BR | 16 | M16 x 1.5 | 35 | 18 | 52.1 max | 23,400 | 27,300 | 167 |
| NUCF18BR | 18 | M18 x 1.5 | 40 | 20 | 58.1 max | 25,200 | 30,900 | 244 |
| NUCF20-1BR | 20 | M20 x 1.5 | 47 | 24 | 66.1 max | 38,900 | 49,000 | 384 |
| NUCF20BR | 20 | M20 x 1.5 | 52 | 24 | 66.1 max | 43,100 | 58,100 | 457 |
| NUCF24BR | 24 | M24 x 1.5 | 62 | 29 | 80.1 max | 58,200 | 75,300 | 789 |
| NUCF24-1BR | 24 | M24 x 1.5 | 72 | 29 | 80.1 max | 63,900 | 88,800 | 1,020 |
| NUCF30BR | 30 | M30 x 1.5 | 80 | 35 | 100 max | 90,300 | 121,000 | 1,600 |
| NUCF30-2BR | 30 | M30 x 1.5 | 90 | 35 | 100 max | 90,300 | 121,000 | 1,970 |
Length B1 is the overall length with the stud; where marked max it is a maximum. C is the basic dynamic load rating and C0 the basic static load rating. Mass is for the product body only: the nut, grease nipple and other accessories are not included.
Selecting the right option
Pick the outside diameter of the outer ring (dimension D, in mm) in the options above: the stud size, thread and ratings follow from the model number shown in the Model Details. All sizes on this page are stud types with a hexagon hole in the stud head and full complement cylindrical rollers.
Some stud sizes come with more than one outer ring, so check the diameter against your cam track: 22 mm OD and 26 mm OD (NUCF10BR and NUCF10-1BR); 30 mm OD and 32 mm OD (NUCF12BR and NUCF12-1BR); 47 mm OD and 52 mm OD (NUCF20-1BR and NUCF20BR); and others in the size table.
Match the stud diameter and thread to your mounting hole and nut: the Model Details list the thread, the thread length and the hexagon hole size.
This page is the crowned outer ring type (R in the part number). The crowned ring is effective in moderating the edge load caused by mounting errors, and it is the type to use if the outer ring does not make good contact with the mating running surface.
Fitting and use

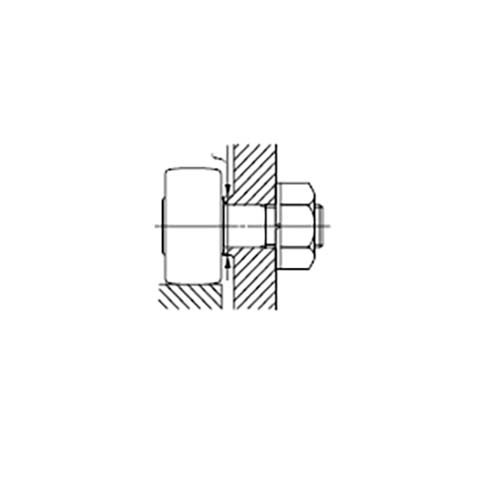

Make the centre axis of the mounting hole perpendicular to the direction of travel and match the stud shoulder accurately with the seating surface given by dimension f (min.) in the Model Details. Keep the chamfer on the mounting hole as small as possible (C0.5 or so), and do not hit the flange head directly with a hammer, because that can lead to irregular rotation or cracking.
Hold the hexagon hole with a hex key and tighten the nut with a spanner: turning the hexagon hole itself to tighten can damage it. Do not exceed the maximum tightening torque in the Model Details, because an over-tightened thread can break. Where loosening is possible, use a lock nut, spring washer or self-locking nut.
The mark on the flange head shows the oil hole position on the raceway: keep the oil hole out of the loading zone. The recommended mounting hole tolerance for the stud is H7.
Lubrication: the models on this page are prepacked with grease.
If you are unsure which size suits your cam track and mounting, send AIMS the part number or the dimensions and we will help you confirm it.
