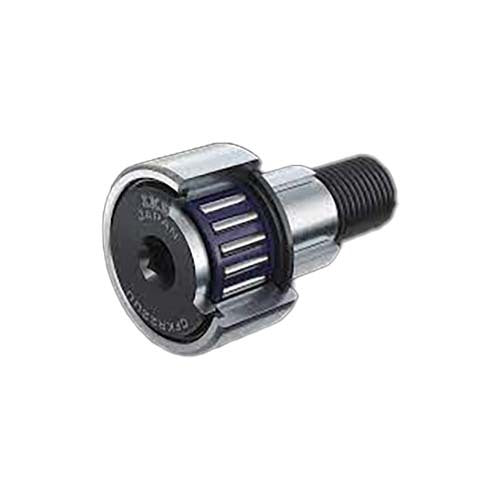

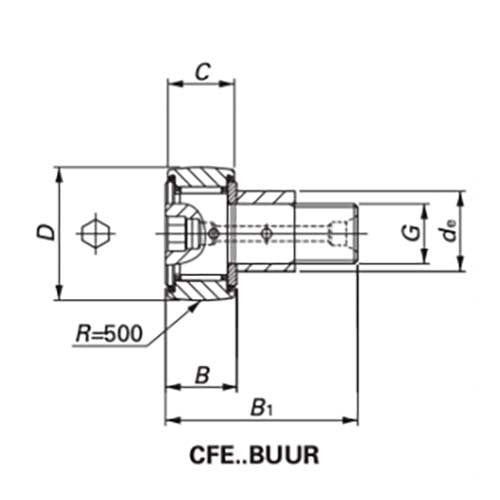

Cam Follower Eccentric Collar 2RS Crowned Outer Ring (CFE)

• Sealed type.
• With hexagon hole.

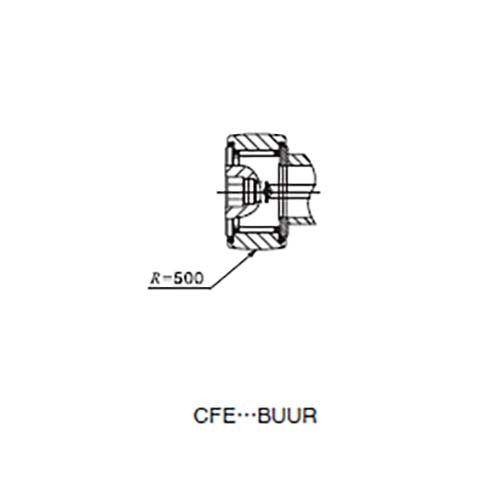

• Crowned outer ring.
• CFE, Eccentric type Cam Follower.
• An eccentric collar is assembled over the Cam Follower stud, enabling the outer ring to be positioned easily in the radial direction against the mating track surface.
• Eccentricity is 0.4 to 1.5mm.

About Cam Follower

• Cam Followers are bearings with a stud incorporating needle rollers in a thick-walled outer ring.
• They are designed for outer ring rotation, and the outer rings run directly on mating track surfaces.
• They are widely used as follower bearings for cam mechanisms and for linear motions.

About Structure and Features

• These bearings are designed for outer ring rotation and have superior rotational performance with a small coefficient of friction and high load capacity.
• As studs already have threads or steps, they are easy to mount.
• Cam Followers are follower bearings for cam mechanisms and linear motions and have high rigidity and high accuracy.
• They are, therefore, used widely for machine tools, industrial robots, electronic devices, and OA equipment.
• Stainless steel-made Cam Followers are superior in corrosion resistance and suitable for applications in environments where oil cannot be used or water splashed, and in clean rooms.
