IKO Cam Follower Eccentric Collar Full | AIMS Industrial

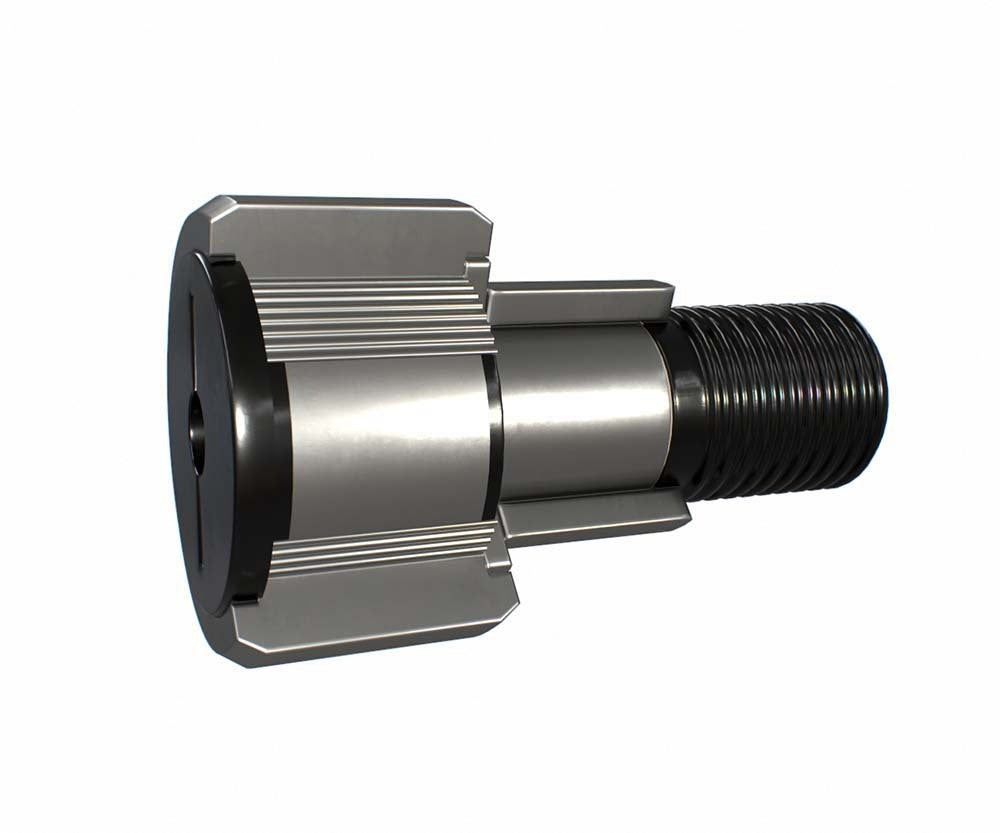

Cam Follower Eccentric Collar 2RS Full Complement Crowned Outer Ring

• Sealed type.
• With hexagon hole.
• Full Complement.

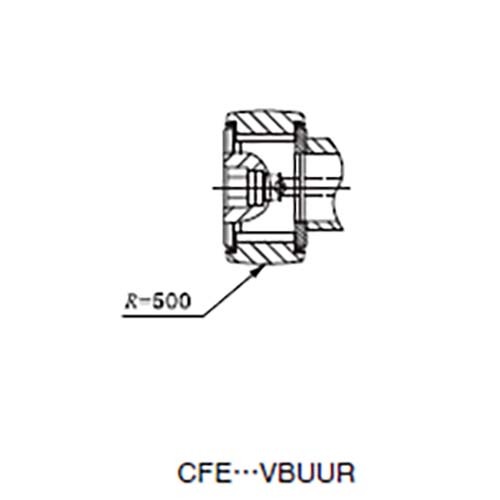

• Crowned outer ring.
• CFE, Eccentric type Cam Follower.

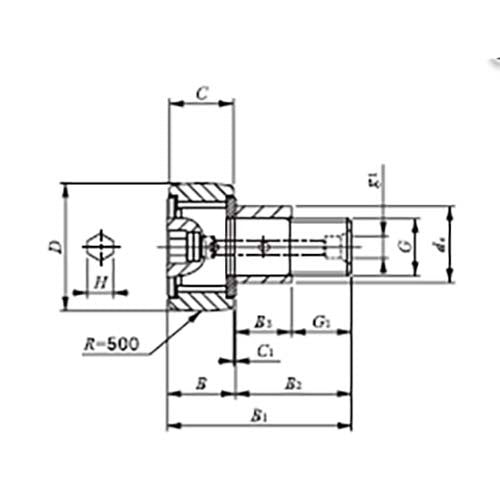

• An eccentric collar is assembled over the Cam Follower stud, enabling the outer ring to be positioned easily in the radial direction against the mating track surface.
• Eccentricity is 0.4 to 1.5mm.

About Cam Follower

• Cam Followers are bearings with a stud incorporating needle rollers in a thick-walled outer ring.
• They are designed for outer ring rotation, and the outer rings run directly on mating track surfaces.
• They are widely used as follower bearings for cam mechanisms and for linear motions.
