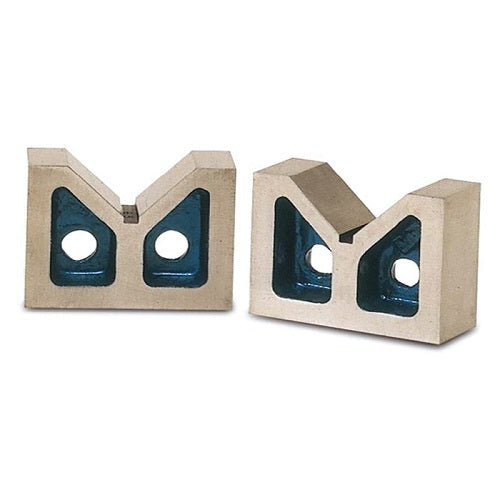

Maxigear Cast Iron Vee Block Without Clamp, VBCI100-VBCI300

Maxigear cast iron vee blocks without clamps in six sizes, from VBCI100 (100mm long, 50mm vee width) to VBCI300 (305mm long, 165mm vee width).

The blocks are made of seasoned castings, accurately ground square and parallel, with a parallelism tolerance of the vee axis to the base within 30 microns per 6" length and a squareness tolerance of the vee axis to the end faces within 25 microns.

Where this product is used

• Supplied without clamps, in matched and numbered pairs

Features

• Made of seasoned castings
• Accurately ground square and parallel
• Vee axis to base parallelism within 30 microns per 6" length
• Vee axis to end faces squareness within 25 microns
• Length, height, thickness and vee width for each part number

Key specifications

Choosing the right option

Choose by the work you need to support: VBCI100 is 100mm long with a 50mm vee width and VBCI300 is 305mm long with a 165mm vee width. VBCI100 and VBCI125 share a 50mm vee width and differ in length, height and thickness. These blocks have no clamps: for blocks with clamps see the vee blocks and clamp set and the 70 x 63 x 45mm vee blocks and clamp set.

Blocks with clamps: vee blocks and clamp set, 70 x 63 x 45mm vee blocks and clamp set.
