Challenger universal plate clamp, 3000kg

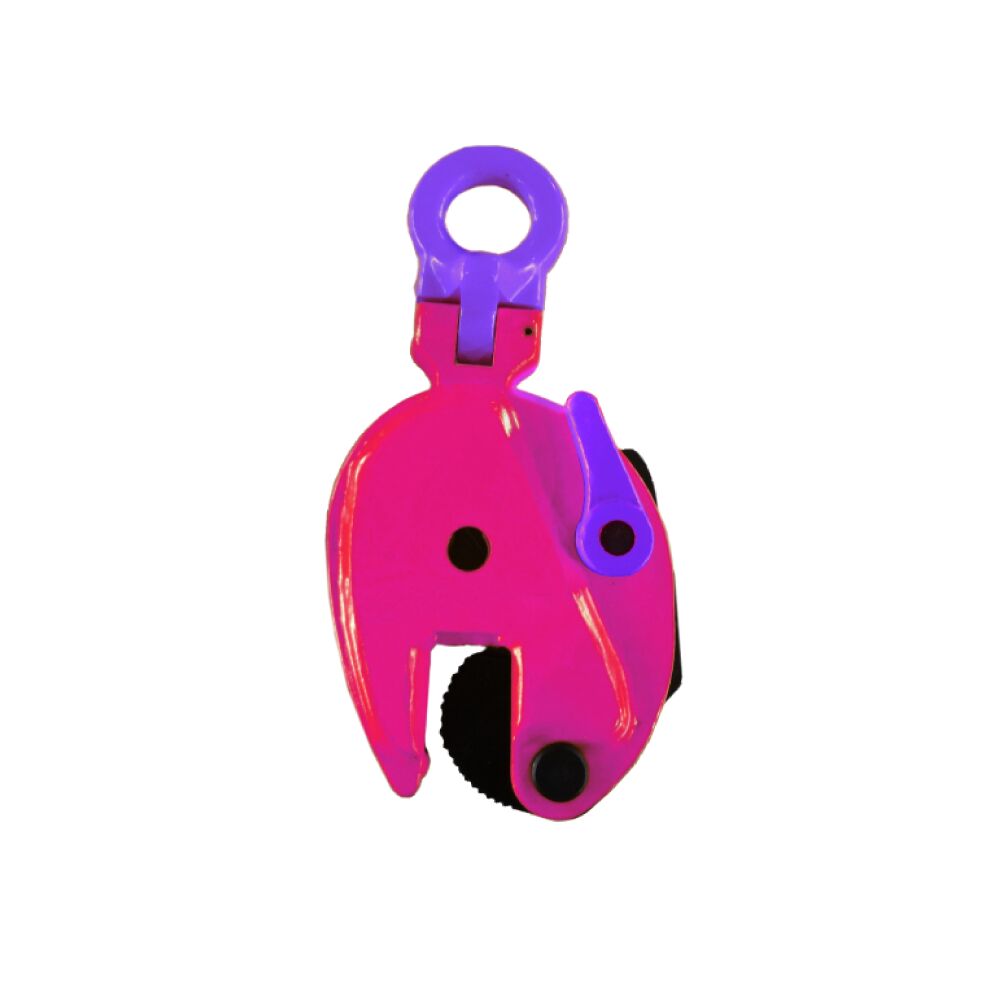

The Challenger Universal Plate Clamp is a steel plate lifting clamp with a universal hinged lifting eye, in capacities from 0.5 tonne to 5 tonne. It lifts loads from any direction: horizontal, vertical and sidelong. There are 5 models, with a jaw range from 0 to 15mm up to 0 to 50mm.

The clamp locks securely in both the closed and open positions, has pre-tension mechanisms that prevent slipping during lifting and lowering, suits material hardness up to 37RC and is all steel with no aluminium.

Where this product is used

• Lifting steel plate and sections with a crane, hoist or chain block
• Plate handling in fabrication shops, steel yards and maintenance areas
• Lifts where the plate is picked up in a horizontal, vertical or sidelong position

Features

• Rated capacity from 0.5 tonne to 5 tonne
• Universal hinged lifting eye
• Lifts from horizontal, vertical and sidelong directions
• Locks in both the closed and open positions
• Pre-tension mechanisms prevent slipping during lifting and lowering
• Suitable for material hardness up to 37RC
• Steel construction, no aluminium

Key specifications

Choosing the right option

Match the clamp to your plate: the plate thickness has to sit inside the jaw range for the size, and the load must be at least 10% of the rated capacity and no more than the rated capacity. Check the plate hardness is 37RC or less. Lifting equipment must be used within its rated capacity, inspected before each use, and selected and used in line with your site lifting procedure and the applicable standards and regulations. Do not use it to lift or lower people. If you are unsure what suits your lift, speak to a qualified rigger before ordering.
