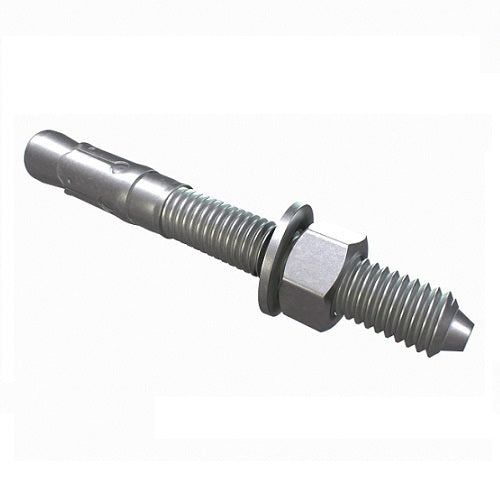

Clawbolt Wedge Anchor Mechanical Galvanised

• ClawBolts® (Through Bolts) are pre-assembled single unit wedge type anchors that are used in solid concrete applications.
• They comprise of a partially threaded stud, which has a tapered end section, a captive expandable clip, nut and washer.
• Fixing is achieved by controlled torquing of the nut which draws the tapered section up into the clip, thereby expanding it outward and forcing the ClawBolt™ against the sidewall of the pre-drilled hole.

Features

• ClawBolt™ diameter equals drilled hole diameter
• Simple installation through object to be fastened
• Good performance in tensile, shear and loading capacity
• Variety of diameters & lengths to suit different applications
• Low costs on supply and installation
• Can be immediately used

Applications

• Used in applications that require a heavy to medium duty anchor for fixing into solid concrete.
• Typically used by contractors in the building, electrical, HVAC and steel trades.
• Commonly used where through fastening of parts to concrete are required such as metal angles, ties, brackets, traffic barriers, shelving, balustrade, machinery etc; and through timber beams, railings, posts, stairways etc.
