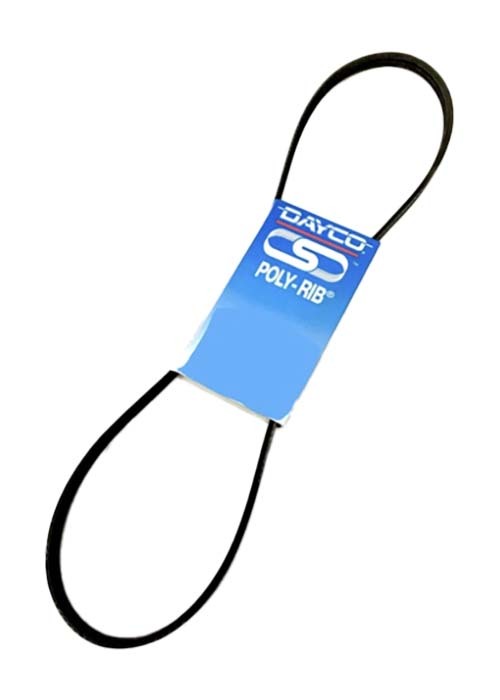

Dayco Poly-V Multi-Rib Belt, 6PK1790
Available

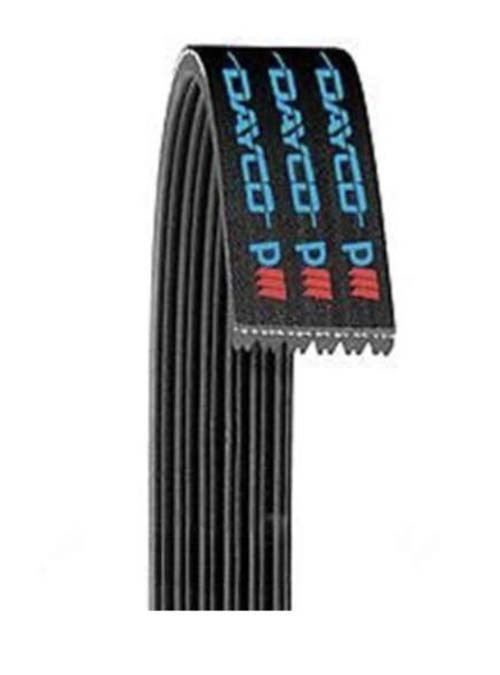

The Dayco Poly-V belt, also called a multi-rib or serpentine belt, has a flat back and a series of longitudinal ribs that run in a grooved pulley. All four belts here are PK profile with 6 ribs, with a 3.56mm rib pitch, so each is about 21.4mm wide.
The belt has a rubber-impregnated fabric backing for load carrying and quiet running, and a treated cord for length stability. The belt compound is EPDM. The four sizes are 6PK1790, 6PK1940, 6PK2500, 6PK2615. The belt code gives the number of ribs, the profile and the effective length in mm: 6PK1790 is a 6-rib PK belt with an effective length of 1790mm. This is a clearance sale and there are no returns.
Where this product is used
- Engine accessory drives on petrol and diesel engines
- On-road and off-road vehicles
- Agricultural, mining and industrial machinery with Poly-V drives
- Multi-pulley serpentine drives
Features
- PK profile with 6 ribs and a 3.56mm rib pitch
- One multi-rib belt runs on several grooves, so belts do not need to be matched
- Grooved design allows flexing in normal and backside bending
- Rubber-impregnated fabric backing for load carrying capacity
- Treated cord for length stability
- EPDM compound
- 4 sizes: 6PK1790, 6PK1940, 6PK2500, 6PK2615
Key specifications
| Specification | Detail |
|---|---|
| Brand | Dayco |
| Product | Poly-V (multi-rib) drive belt |
| Profile | PK |
| Number of ribs | 6 |
| Rib pitch | 3.56mm |
| Belt width (6 ribs) | about 21.4mm |
| Compound | EPDM |
| Sizes | 6PK1790, 6PK1940, 6PK2500, 6PK2615 |
| Effective lengths | 1790, 1940, 2500 and 2615mm |
Sizes
| Belt code | Profile | Ribs | Effective length (mm) | Width (mm) |
|---|---|---|---|---|
| 6PK1790 | PK | 6 | 1790 | about 21.36 |
| 6PK1940 | PK | 6 | 1940 | about 21.36 |
| 6PK2500 | PK | 6 | 2500 | about 21.36 |
| 6PK2615 | PK | 6 | 2615 | about 21.36 |
Selecting and fitting
Match the profile, the number of ribs and the effective length to the belt you are replacing. The belt code is printed on the back of the belt. Measure the length of the old belt and the pulley layout if the code is not readable.
Fit the belt with the ribs in the pulley grooves, release belt tension before fitting, and check that the belt seats fully in every groove before starting the drive. Replace the belt if it is cracked, glazed or worn.
Choosing the right option
| Option | Part number | SKU |
|---|---|---|
| 6PK1790 | 6PK1790 | CA0045838 |
| 6PK1940 | 6PK1940 | CA0045855 |
| 6PK2615 | 6PK2615 | CA0045917 |
| 6PK2500 | 6PK2500 | CA0045908 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Dayco Poly-V Drive Belt (Multi-Rib), PK Profile, 6PK1790 to 6PK2615: 6PK1790
SKU: CA0045838
This is a clearance sale and there are no returns. Dayco 6PK1790 Poly-V multi-rib belt, PK profile, 6 ribs, 1790mm effective length. Clearance, no returns.
