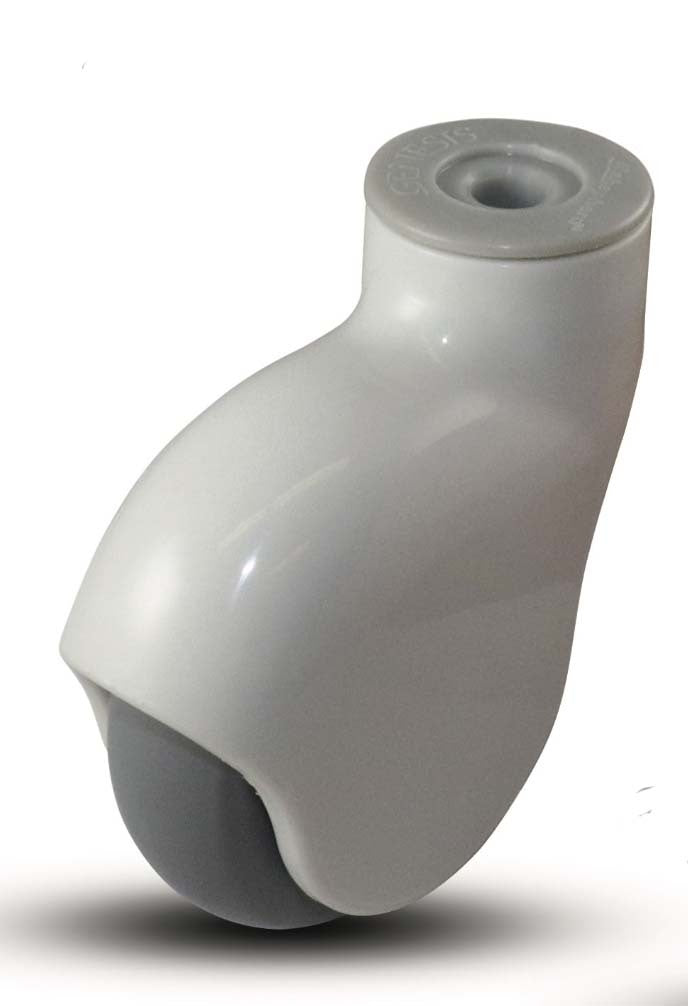

Colson P1 Genesis swivel castor, M10 Bolt Hole
Available
The Colson P1 (Genesis) swivel castor is a compact bolt hole castor with a soft 65A MonoTech rubber wheel that is non-marking and works on both carpet and hard floors. It comes in two sizes: an M10 bolt hole with a 75mm wheel rated for 50kg, and an M12 bolt hole with a 100mm wheel rated for 102kg.
Sealed precision bearings in the swivel and the wheel give quiet, easy rolling, and integrated thread guards protect the wheel from entangling debris. The strong protective body conceals the components, which makes it easy to clean.
Where this product is used
- Computer carts and electronic equipment
- Laboratory and monitoring equipment
- Audio and video carts, stands and IV poles
- Medical carts
Features
- Sealed precision bearings in the swivel and wheel for quiet, easy rolling
- Soft 65A MonoTech wheel, non-marking, suits carpet and hard floors
- Protective body conceals components for easy cleaning
- Integrated thread guards protect the wheel from entangling debris
Key specifications
| Specification | Detail |
|---|---|
| Brand | Colson |
| Series | P1 (Genesis) |
| Castor type | Swivel |
| Wheel material | Rubber, 65A MonoTech |
| Bearings | Sealed precision bearings in swivel and wheel |
| Sizes | M10 with 75mm wheel, M12 with 100mm wheel |
Choosing the right option
Choose the size by the bolt hole in your equipment and the load on each castor: the M10 version has a 75mm wheel and is rated for 50kg, and the M12 version has a 100mm wheel and is rated for 102kg. Check the castor against the load on each castor, not the total load, and allow for uneven floors and shock loads.
See also: Colson Bolt Hole Swivel Castor with Brake - P1 (Genesis), Colson 125 x 162mm Swivel Bolt Hole Castor P6 (Avant) Series - Rubber.
| Option | Part number | SKU |
|---|---|---|
| M10 Bolt Hole | A0194615 | |
| M12 Bolt Hole | A0194616 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Colson Bolt Hole Swivel Castor - P1 (Genesis): M10 Bolt Hole
SKU: A0194615 | Model: P10A22K75
This is the fitting type M10 Bolt Hole option of the Colson Bolt Hole Swivel Castor - P1 (Genesis). Key details for this option: bearing type Precision Bearings, castor type Swivel, fork material Hard-wearing Nylon Housing, mounting size M10, wheel diameter 75mm.
Colson Bolt Hole Swivel Castor - P1 (Genesis) Sealed precision bearings in swivel and wheel provide quiet, effortless mobility. Soft (65A), non-marking MonoTech wheels reject debris and are excellent on both carpet and hard floors. Strong protective body conceals components for easy cleaning. Integrated thread guards protect wheels from entangling debris P1 (Genesis) series is ideal for: Computer carts
Laboratory equipment
Audio/video carts
Electronic equipment
Medical carts
Monitoring equipment
Stands
IV Poles.
