8G x 25 mm Countersunk Chipboard Screw, 304 Stainless Steel - CNQA28GX25
Available

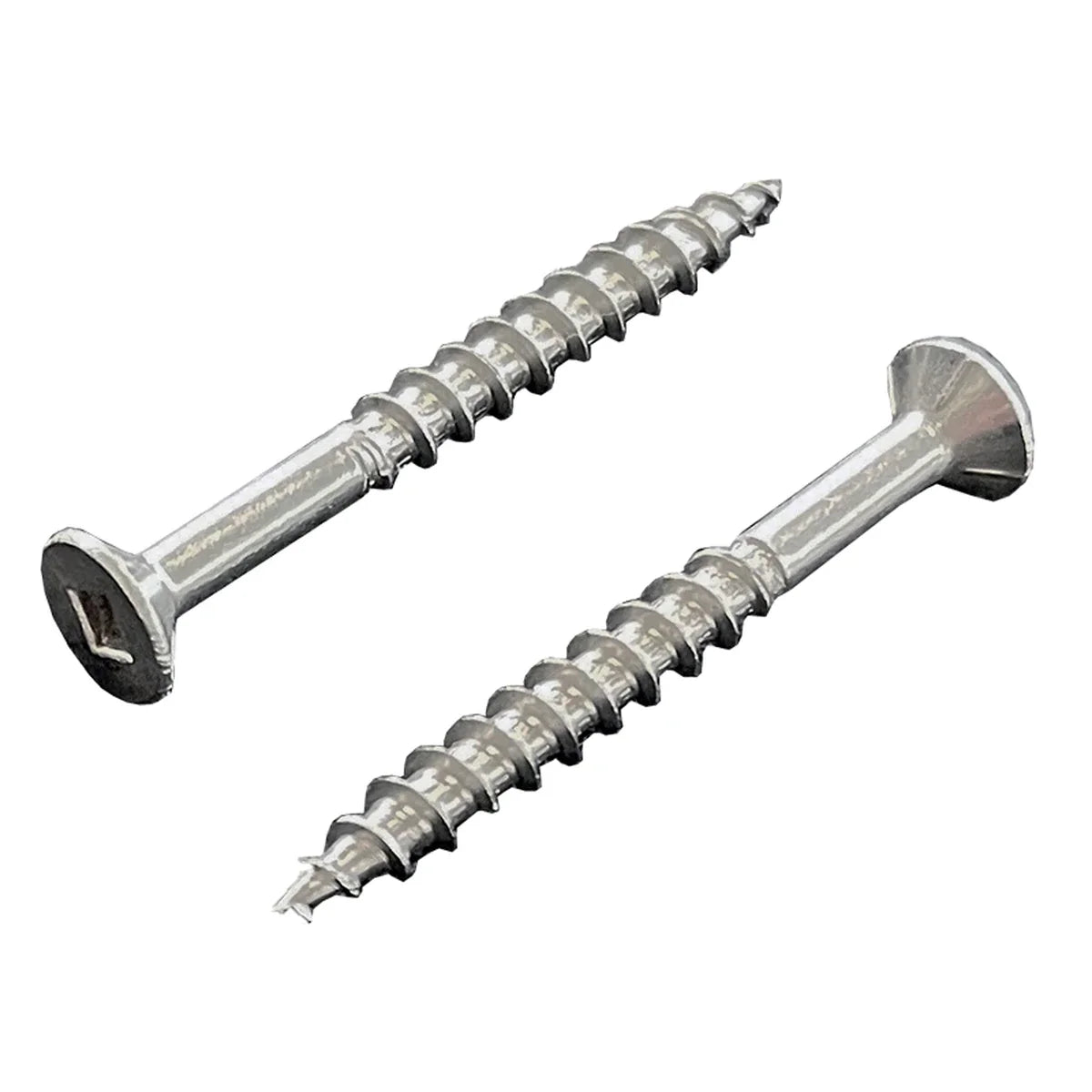

Made in 304 (A2) stainless steel, the Countersunk Chipboard Screw (Ribbed Shank) is a countersunk head screw with a needle point and a ribbed shank. It is used to fix into chipboard, MDF and softwood.
You can choose from 14 variants, covering sizes 8G to 10G and lengths 19 mm to 100 mm. Pack quantities depend on size: packs of 500 to 1000.
Made from 304 (A2) stainless steel, a standard austenitic grade with good everyday corrosion resistance. It is a sound choice away from the coast; in chloride-exposed settings, step up to 316 (A4).
Austenitic stainless steel is generally non-magnetic, although cold-worked parts can show weak magnetism. Use stainless washers and nuts with stainless fasteners, so the whole joint is made of the same material.
Where this product is used
- Signs, furniture and fittings
- Cabinetry and shopfitting
- Chipboard, MDF and particle board assembly
- General workshop and maintenance use
- Joinery in damp areas
- Bulk jobs and trade or maintenance stores buying in larger packs
Features
- Range covers 8G to 10G in 14 variants
- Ribbed shank reduces friction and binding
- A2 (304) stainless steel for indoor, fresh water and general outdoor use
- Needle point starts in board without much force
- Pack quantities to suit trade and bulk buying: packs of 500 to 1000
- Lengths from 19 mm to 100 mm
Key specifications
| Specification | Detail |
|---|---|
| Product | Countersunk Chipboard Screw (Ribbed Shank) |
| Type | Countersunk head screw with a needle point and a ribbed shank |
| Material | A2 (304) stainless steel |
| Head type | Countersunk |
| Drive | See variant |
| Key features | Needle point starts in board without much force; Ribbed shank reduces friction and binding |
| Thread system | Imperial gauge sizes |
| Fitting tip | Use anti-seize on the thread to reduce galling |
| Typical environment | Indoor, fresh water and general outdoor use |
| Length range | 19 mm to 100 mm |
| Magnetic response | Generally non-magnetic (austenitic); cold-worked parts can show weak magnetism |
| Pack size | 500 to 1000, by size |
| Sizes | 8G to 10G |
| Listed variants | 14 |
Selecting the right option
Pre-drilling is advised in hardwood and near the board edge. Gauge sizes are shown as a number followed by G.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
8G / 25 mm
Model Number: CNQA28GX25
-
8G / 32 mm
Model Number: CNQA28GX32
-
8G / 38 mm
Model Number: CNQA28GX38
-
8G / 45 mm
Model Number: CNQA28GX45
-
8G / 50 mm
Model Number: CNQA28GX50
-
8G / 19 mm
Model Number: CNQA28GX19
-
10G / 25 mm
Model Number: CNQA210GX25
-
10G / 32 mm
Model Number: CNQA210GX32
-
10G / 38 mm
Model Number: CNQA210GX38
-
10G / 45 mm
Model Number: CNQA210GX45
-
10G / 50 mm
Model Number: CNQA210GX50
-
10G / 65 mm
Model Number: CNQA210GX65
-
10G / 75 mm
Model Number: CNQA210GX75
-
10G / 100 mm
Model Number: CNQA210GX100
