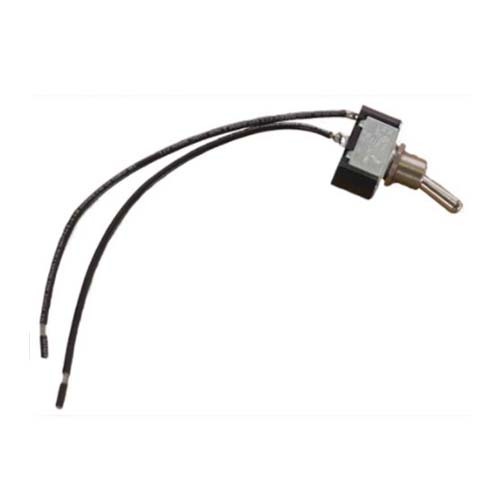

CRC SmartWasher 1280-TOGSW Toggle Switch for Control Box

This is the CRC SmartWasher toggle switch for the control box, part 1280-TOGSW. It is the Toggle Switch, and the 5-LED control box assemblies include it along with the boot, fuse and lid.

On the SW-23 it is the pump switch, attached to a 10 minute timer.

Where this product is used

• For use with the SmartWasher SW-23, SW-25, SW-28 and SW-37

Features

• 'Toggle Switch' (1280-TOGSW)
• On the SW-23 it is the pump switch, attached to a 10 minute timer
• Included in CRC's 5-LED control box assemblies (switch, boot, fuse and lid, power cord not included)
• Supplied as one part (each)

Key specifications

Choosing the right option

The switch boot is a separate part, CRC SmartWasher 1281-BOOTS Toggle Switch Boot Black, and the control box lid is CRC SmartWasher 1705-CBLID Lid For 5-LED Control Box.

See also: CRC SmartWasher 1281-BOOTS Toggle Switch Boot Black, CRC SmartWasher 1705-CBLID Lid For 5-LED Control Box, CRC SmartWasher 4137-CBASY-220 Control Box Assembly 5-LED With Fuse For SW-23, CRC SmartWasher 4136-CBASY-220 Control Box Assembly 5-LED With Fuse For SW-25 and SW-28.

Using it

The pump switch is attached to a ten minute timer. Turning the switch ON (upward position) starts fluid flowing for ten minutes. To restart the flow, turn the switch OFF then ON again.

Limits and safety

On the SW-23 it is the pump switch, which runs the pump for a ten minute timed period when turned ON. The boot is sold separately as 1281-BOOTS 'Boot Seal'.
