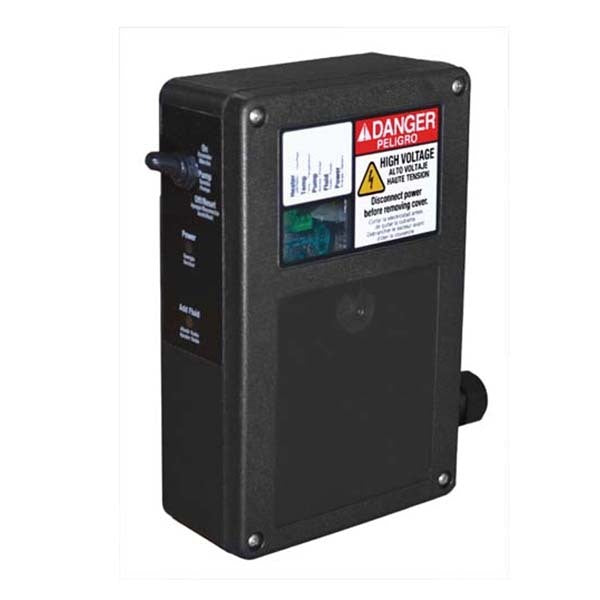

CRC SmartWasher 4137-CBASY-220 Control Box Assembly 5-LED With Fuse For SW-23
Available
The CRC SmartWasher 4137-CBASY-220 is listed by CRC as a '5-LED Contr Box with Fuse' in the base diagram of the SW-23 operating manual. CRC lists it as including a switch, boot, fuse and lid, and as not including a power cord.
CRC lists different control box codes for other models; the SW-37 uses 4138-CBASY-37 or 4138-CBASY-37-2.
Features
- Listed by CRC as '5-LED Contr Box with Fuse'
- Includes switch, boot, fuse and lid (CRC wording)
- Does not include a power cord (CRC wording)
- Listed in the SW-23 manual base diagram; other models use different codes
Key specifications
| Specification | Detail |
|---|---|
| Part | 5-LED Contr Box with Fuse (as printed by CRC) |
| Part type | Spare part |
| Fits | SmartWasher SW-23 |
| Includes | Switch, boot, fuse and lid (CRC wording) |
| Power cord | Not included (CRC: 'DOES NOT INCLUDE POWER CORD') |
| Voltage | '220' is part of the CRC code; the SW-23 manual says to plug the unit into a 220VAC GFCI electrical outlet |
| Fuse rating | Not stated in CRC documents |
| CRC part number | 1000576 (catalogue code 4137-CBASY-220) |
| Source | CRC SmartWasher SW-23 operating manual (revision code SWM23 2020/AU) |
Selecting the right option
CRC lists a different control box code for other models; see CRC SmartWasher 4136-CBASY-220 Control Box Assembly 5-LED With Fuse For SW-25 and SW-28. CRC also lists a control box lid as a separate part; see CRC SmartWasher 1705-CBLID Lid For 5-LED Control Box.
Using it
CRC's documents give no fitting instructions for this part. The operating manual for your washer shows where it sits in the diagram.
Limits and safety
CRC's SW-23 manual says to plug the unit into a 220VAC GFCI electrical outlet. CRC gives no fuse rating and states that the power cord is not included. Use it only on the SW-23.
Frequently asked questions
What is included in the 4137-CBASY-220 control box assembly?
CRC's SW-23 manual lists it as a 5-LED control box with switch, boot, fuse and lid. The power cord is not included.
Which SmartWasher uses the 4137-CBASY-220?
CRC lists it in the SW-23 operating manual base diagram. The SW-37 uses 4138-CBASY-37 or 4138-CBASY-37-2.
What is the fuse rating on the 4137-CBASY-220?
CRC does not state a fuse rating. The '220' in the code is part of the part number.
