IKO NURT15-1R Cylindrical Roller Follower, 15 mm bore, 42 mm OD, Shield, Crowned
Available
This page covers 9 IKO NURT Series cylindrical roller followers (track rollers) (NURT15-1R to NURT45-1R, 15 to 45 mm bore): full complement cylindrical rollers, shield type construction and a crowned outer ring. Choose the size in the options above; each variant has its own dimensions and ratings in the Model Details.

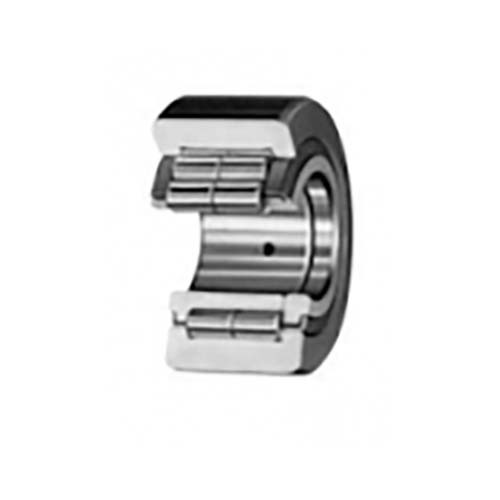

The NURT series is the cylindrical roller follower: double rows of full complement cylindrical rollers in the outer ring take large radial loads, and the outer ring is guided axially by the outer ring shoulder and the end faces of the cylindrical rollers. A roller follower (track roller) is a bearing designed for outer ring rotation, with rollers inside a thick-walled outer ring. The outer ring runs directly on the mating cam guide surface, and roller followers are widely used in cam mechanisms and in linear motions of conveying equipment.
In the part number, R marks the crowned outer ring (no R is cylindrical). Every model on this page has a crowned outer ring.
Where this product is used
- Cam mechanisms, with the outer ring running directly on the cam guide surface
- Linear motions of conveying equipment
- Follower and track roller positions on a shaft
Features
- Cylindrical roller follower with inner ring: double rows of full complement cylindrical rollers in the outer ring can withstand large radial loads
- Full complement cylindrical rollers: the outer ring is guided axially by the outer ring shoulder and the end faces of the rollers
- Shield type: narrow clearances between the side plates and the outer ring form labyrinths
- Crowned outer ring (R): moderates the edge load caused by mounting errors
- Prepacked with grease
- Basic dynamic load rating C 23,400 to 91,500 N and static load rating C0 27,300 to 135,000 N (each size in the Model Details)
- Track capacity 3,910 to 12,400 N on a 40 HRC mating surface
Key specifications
| Specification | Detail |
|---|---|
| Type | Cylindrical roller follower (track roller) with inner ring |
| Models | NURT15-1R to NURT45-1R (9 sizes) |
| Bore (shaft) diameter d | 15 to 45 mm |
| Outer ring diameter D | 42 to 100 mm |
| Width B | 19 to 32 mm |
| Outer ring width C | 18 to 30 mm |
| Rolling elements | Full complement cylindrical rollers, double row in the outer ring |
| Seal | Shield type: narrow clearances between the side plates and the outer ring form labyrinths |
| Outer ring | Crowned outer ring (R in the part number) |
| Basic dynamic load rating C | 23,400 to 91,500 N |
| Basic static load rating C0 | 27,300 to 135,000 N |
| Maximum allowable static load | 27,200 to 135,000 N |
| Track capacity (mating surface 40 HRC) | 3,910 to 12,400 N |
| Lubrication | Prepacked with grease |
| Recommended shaft tolerance (metric series) | g6 or h6 |
| Brand | IKO (Nippon Thompson Co., Ltd., Japan) |
Available sizes

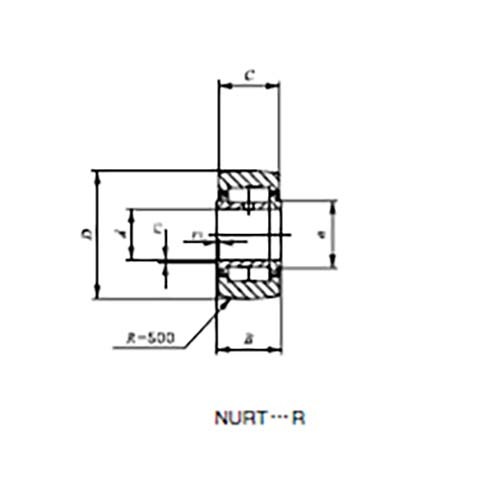

| Model | Bore d (mm) | OD D (mm) | Width B (mm) | Width C (mm) | a (mm) | C (N) | C0 (N) | Mass (g) |
|---|---|---|---|---|---|---|---|---|
| NURT15-1R | 15 | 42 | 19 | 18 | 20 | 23,400 | 27,300 | 160 |
| NURT17-1R | 17 | 47 | 21 | 20 | 22 | 25,200 | 30,900 | 222 |
| NURT20R | 20 | 47 | 25 | 24 | 27 | 38,900 | 49,000 | 245 |
| NURT20-1R | 20 | 52 | 25 | 24 | 27 | 38,900 | 49,000 | 321 |
| NURT25-1R | 25 | 62 | 25 | 24 | 31 | 43,100 | 58,100 | 450 |
| NURT30R | 30 | 62 | 29 | 28 | 38 | 58,200 | 75,300 | 466 |
| NURT30-1R | 30 | 72 | 29 | 28 | 38 | 58,200 | 75,300 | 697 |
| NURT35-1R | 35 | 80 | 29 | 28 | 44 | 63,900 | 88,800 | 840 |
| NURT45-1R | 45 | 100 | 32 | 30 | 53 | 91,500 | 135,000 | 1,400 |
C is the basic dynamic load rating and C0 the basic static load rating; a is the mating seating dimension.
Selecting the right option
The options on this page are the outside diameter (D, in mm), the width (B, in mm) and the shaft diameter (bore d, in mm). Two models can share a bore, for example the plain size and the -1 size, with different outside diameters: check D against your cam track.
This page is the crowned outer ring type (R in the part number). The crowned ring is effective in moderating the edge load caused by mounting errors.
Fitting and use
For the shield type, match the side surface correctly to the mating seating surface given by dimension a in the Model Details and fix it. The mounting part should make even contact with the entire side plate surface: uneven contact may increase rotational torque and shorten the service life.
Keep the oil hole of the inner ring out of the loading zone, which can lead to a short bearing life.
Recommended shaft tolerance for the metric series is g6 or h6.
Lubrication: the models on this page are prepacked with grease.
Track capacity is the load that can be applied continuously on a steel cam guide surface of 40 HRC without deforming or indenting it. For a different hardness it is multiplied by the track capacity factor (0.45 at 30 HRC): ask AIMS if you need the factor for your guide surface.
If you are unsure which size suits your cam track and mounting, send AIMS the part number or the dimensions and we will help you confirm it.
