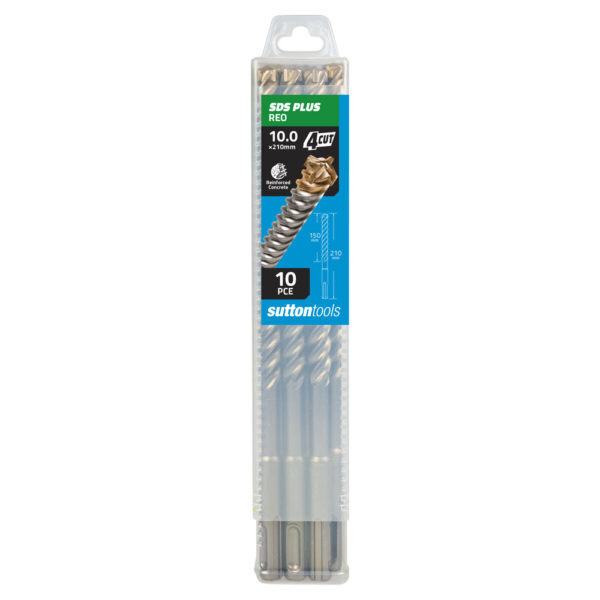

Sutton 10mm x 210mm D683 SDS Plus Masonry Drill Bit - 4 Cut - TCT - Pack of 10

The Sutton D683 is a 4-cut SDS Plus masonry drill bit bulk pack (10 drills per pack) with a tungsten carbide tip (TCT), 210 mm overall length with a 150 mm flute length. This range has 2 sizes: 10 and 12 mm. It is for reinforced concrete, brick, aerated concrete, stone and granite.

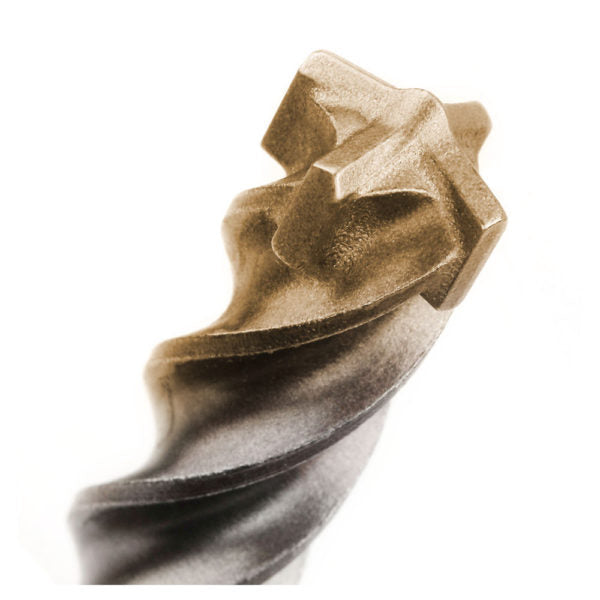

The unique TCT head has four thin external tips, designed for less friction. The combination spiral flute pairs a half-round spiral, which accelerates dust extraction away from the tip, with a square spiral that combines a compression channel with a depression chamber for controlled dust removal. The SDS Plus shank suits all SDS Plus rotary hammer drills. The sand-blasted finish is an environmentally friendly production method with zero heavy metals.

Where this product is used

• Drilling reinforced concrete, brick, aerated concrete, stone and granite with an SDS Plus rotary hammer.
• Applications include DIY, trade, professional, electrical, plumbing, carpentry, plastering and masonry work.
• Fixing and anchor holes up to the 150 mm flute length, bought as a 10 pack for repeat drilling on site.

Sizes and item numbers

Every size in the range, with its Sutton item number. Each item is a pack of 10 drills of one size. Overall length and flute length are in millimetres.

Drilling notes

• Use in an SDS Plus rotary hammer drill with the hammer action on (rotation plus percussion).
• Apply steady, moderate pressure and let the hammer do the work; extra force does not speed up the cut.
• Choose a length so the hole depth sits within the flute length. For deeper holes step up to a longer series.
• Withdraw the bit from time to time in deep holes to help clear dust, and clear the dust from the hole before fitting an anchor.
• Match the drill diameter to the hole size the anchor or fixing manufacturer specifies.

Key specifications
