NACHI 6910-ZZE Shielded Deep Groove Ball Bearing 50x72x12 mm
Available
This NACHI range covers 3 single row deep groove ball bearings, shielded, from 17 to 90 mm bore (outer diameters 26 to 115 mm, widths 5 to 13 mm). Select the size from the drop-down: each size has its own bearing number, load ratings and limiting speed in the Model Details.
Deep groove bearings are the most widely used ball bearing type. They carry radial, axial and combined loads, run at high speed with high running accuracy, and need no adjustment.
Where this product is used
- Electric motors and generators
- Pumps, fans and blowers
- Gearboxes and industrial transmissions
- Conveyor rollers, idlers and pulleys
- Power tools, appliances and general industrial machinery
Features
- Two metal shields (ZZE/ZZ) form a labyrinth clearance on both sides and retain the factory grease fill
- Low friction torque, excellent high speed capability, good grease retention and dust protection; not suited to water
- Load ratings, limiting speeds and mass for every size are taken from the manufacturer’s catalogue; boundary dimensions follow the ISO/JIS standard plan
Key specifications
| Specification | Detail |
|---|---|
| Type | Single row deep groove ball bearing |
| Bearing numbers | 3, series 6800, 6900 |
| Bore d | 17 to 90 mm |
| Outer diameter D | 26 to 115 mm |
| Width B | 5 to 13 mm |
| Seals / shields | Shielded ZZ/ZZE (3) |
| Radial internal clearance | Normal and C3 (see Model Details) |
| Basic dynamic load rating Cr | 2.63 to 19 kN |
| Basic static load rating Cor | 1.57 to 19.7 kN |
Available sizes
| Model | Size d x D x B (mm) | Closure | Cr (kN) | Cor (kN) | Limiting speed, grease (rpm) |
|---|---|---|---|---|---|
| 6803-ZZE | 17 x 26 x 5 | Two metal shields (ZZE) | 2.63 | 1.57 | 26,000 |
| 6910-ZZE | 50 x 72 x 12 | Two metal shields (ZZE) | 14.5 | 11.7 | 9,500 |

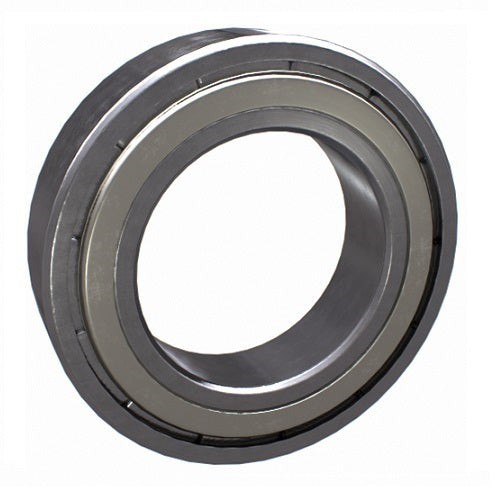

| 6818-ZZ | 90 x 115 x 13 | Two metal shields (ZZ) | 19 | 19.7 | 5,400 |
Selecting the right option
Shielded bearings (ZE one side, ZZE both sides) arrive grease-filled with a labyrinth clearance, so they keep friction low and speed capability high while adding dust protection. Shields are not suited to water. For standard filled grease the recommended temperature range is -25 to 120 °C.
Fitting and use
Check the load and speed against the catalogue figures in the table before ordering, and apply a suitable safety factor. These bearings must always carry a minimum radial load so the balls roll rather than slide, and heavy axial loads should be checked with AIMS before ordering.
Press the ring that is being fitted, not the other ring or the balls: force goes through the side face of the inner ring on a shaft and the outer ring in a housing.
Shielded bearings are built for inner ring rotation, so they are not suited to high speed outer ring rotation. Do not wash or heat shielded bearings before mounting.
Related products
The same NACHI deep groove range is also available with other closures: NACHI open deep groove ball bearings (31 sizes) and NACHI double contact sealed deep groove ball bearings (54 sizes).
