NSK 6307ZZC3 Shielded Deep Groove Ball Bearing, C3 35 x 80 x 21 mm
Available
This NSK range covers 4 single row deep groove ball bearings with two metal shields (ZZ) and C3 radial internal clearance: the 6201ZZC3, 6307ZZC3, 6009ZZC3 and 6011ZZC3, from 12 to 55 mm bore and 32 to 90 mm outer diameter. Select the size from the drop-down: each size has its own bearing number, dimensions, load ratings and limiting speed in the Model Details.
Deep groove bearings are the most widely used ball bearing type. They carry radial loads and axial loads in both directions, run at high speed and need no adjustment. The two metal shields (ZZ) hold the grease in and keep larger particles out without adding seal friction. C3 radial internal clearance is larger than Normal, which suits interference fits and bearings that run warm.
Where this product is used
- Electric motors, pumps and fans
- Conveyors, gearboxes and general machinery
- Power tools and appliances
Features
- Two metal shields (ZZ) hold the grease in and keep larger particles out without touching the inner ring, so friction stays low and speed capability high
- C3 radial internal clearance, larger than Normal, which suits interference fits and temperature differences between the rings
- Basic dynamic load ratings 7.5 to 36.5 kN and static load ratings 3.05 to 21.2 kN across the range
- Limiting speeds of 8,500 to 26,000 rpm on grease, depending on size
Key specifications
| Specification | Detail |
|---|---|
| Type | Single row deep groove ball bearing |
| Bearing numbers | 4: 6201ZZC3, 6307ZZC3, 6009ZZC3 and 6011ZZC3 |
| Bore d | 12 to 55 mm |
| Outer diameter D | 32 to 90 mm |
| Width B | 10 to 21 mm |
| Seals / shields | Two metal shields (ZZ) |
| Radial internal clearance | C3 (larger than Normal) |
| Basic dynamic load rating Cr | 7.5 to 36.5 kN |
| Basic static load rating Cor | 3.05 to 21.2 kN |
Available sizes
| Model | Size d x D x B (mm) | Cr (kN) | Cor (kN) | Limiting speed, grease (rpm) | Mass (kg) |
|---|---|---|---|---|---|
| 6201ZZC3 | 12 x 32 x 10 | 7.5 | 3.05 | 26,000 | 0.037 |
| 6307ZZC3 | 35 x 80 x 21 | 36.5 | 19.2 | 10,000 | 0.464 |
| 6009ZZC3 | 45 x 75 x 16 | 23 | 15.2 | 10,000 | 0.241 |
| 6011ZZC3 | 55 x 90 x 18 | 31 | 21.2 | 8,500 | 0.381 |

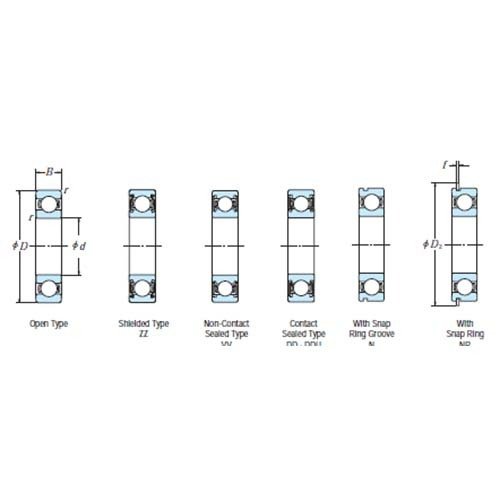

Selecting the right option
Metal shields (ZZ) retain the grease and keep larger particles out without touching the inner ring, so friction stays low and speed capability high. A shield is not a seal: fine dust and moisture can still enter, so choose a contact-sealed bearing where dust, splashes or damp are present.
C3 radial internal clearance is larger than Normal (CN). Choose C3 where the bearing will run with an interference fit on the shaft or in the housing, or where the inner ring will run warmer than the outer ring, because both take up clearance. Keep Normal clearance for light fits, low temperature rise and quiet running.
Fitting and use
Check the load and speed against the figures for your size before ordering and apply a suitable safety factor. Deep groove bearings must always carry a minimum radial load so the balls roll rather than slide.

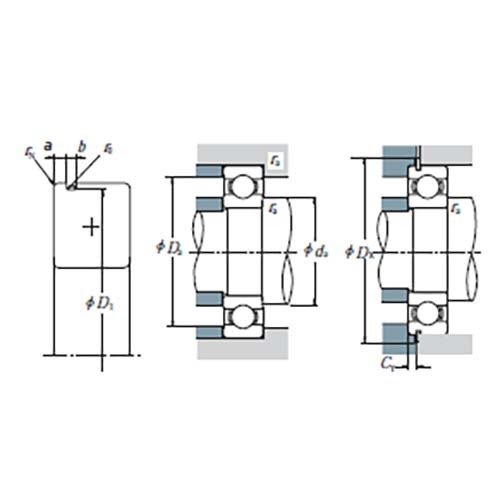

Press on the ring that is being fitted, not the other ring or the balls: force goes through the side face of the inner ring on a shaft and through the outer ring in a housing.
Shielded bearings are lubricated at the factory and built for inner ring rotation. Do not wash them or heat them before mounting, and do not rely on them for high speed outer ring rotation.
Related products
Also available from NSK: the same shielded range with Normal clearance and the sealed (DDU) C3 range.
