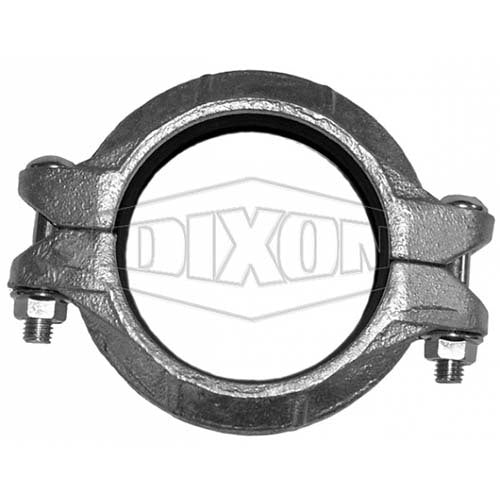

Dixon 165.1 x 168.3mm Roll Grooved Rigid Transition Coupling - Galvanised

This Dixon transition coupling joins 150 NB pipe made to the Australian Standard outside diameter (165.1mm) to 150 NB pipe, valves or fittings made to the API (USA) outside diameter of 168.3mm. The housing is ductile iron to ASTM A536 with a hot dip galvanised finish (AS4680) and a black EPDM gasket. It is rated at 300 PSI with an operating temperature of -30 to 110°C.

Where this product is used

• Joining 150 NB Australian Standard grooved pipe to 150 NB API (USA) size pipe, valves or fittings
• Connecting imported 168.3mm equipment to Australian 165.1mm roll grooved pipework

Features

• Joins 165.1mm OD pipe to 168.3mm OD pipe
• Housing: ductile iron (ASTM A536), hot dip galvanised finish (AS4680)
• Standard gasket: EPDM, black, temperature -30 to 110°C
• Working pressure: 300 PSI

Key specifications

Choosing the right option

Use this coupling only where the two pipe ODs are 165.1mm and 168.3mm; for equal-size joints use a standard rigid or flexible coupling. Check the gasket against the fluid: EPDM suits water and is not for hydrocarbons such as petroleum, kerosene and diesel.
