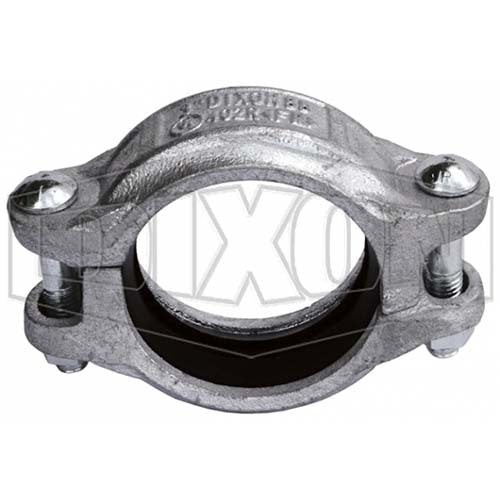

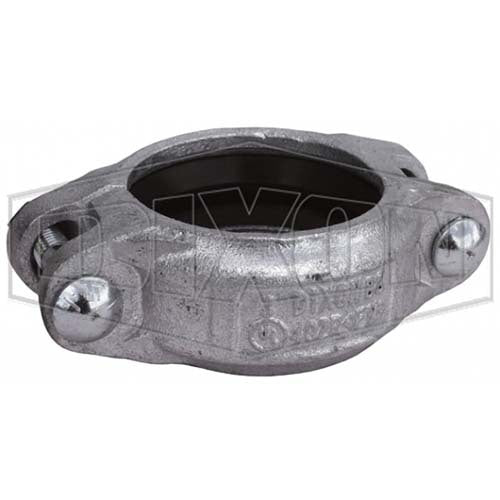

Dixon 1-1/4" (32mm) Roll Grooved Rigid Coupling - Galvanised FWG-402R-43
Available
Rated to 300 PSI (2 MPa), so you can match it to line pressure with confidence. Service temperature -30°C to +110°C, suitable for the conditions on real industrial sites. Ductile Iron construction handles the temperature, pressure and media of industrial duty. Use. For use in the Fire Protection Industry, provides rigidity for valve connections, fire main risers and long straight pipe runs. The tongue and recess design of the coupling adjusts to allow for standard pipe and roll or cut groove tolerances, positively clamping the pipe to resist flexural or torsional loads. Construction. Housing- Ductile Iron conforming to ASTM-A536. EPDM gasket. Hot dip galvanised finish conforming to AS4680.
Key Specifications
| Nominal Size | 1-1/4" (32 mm) / 1-1/2" (40 mm) / 2" (50 mm) / 2-1/2" (65 mm) / 3" (80 mm) / 4" (100 mm) / 6" (150 mm) / 8" (200 mm) |
| Working Pressure | 300 PSI (2 MPa) |
| Temperature Range | -30°C to +110°C |
| Material | Ductile Iron |
| Seal | EPDM (black) |
| Finish | Galvanised |
| Approvals | FM Approved / UL listed and FM Approved |
| Standards referenced | AS4680 |
Where This Is Used
- Suitable for fire sprinkler and hydrant systems.
- Can also be used for hot water and potable water.
- Not for use with hydrocarbons, e.g.
- Petroleum, kerosene and diesel.
- For use in the Fire Protection Industry, provides rigidity for valve connections, fire main risers and long straight pipe runs.
- The tongue and recess design of the coupling adjusts to allow for standard pipe and roll or cut groove tolerances, positively clamping the pipe to resist flexural or torsional loads.
Features
- Markings: Dixon 402R.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
1-1/4
Model Number: FWG-402R-43
-
1-1/2
Model Number: FWG-402R-48
-
2
Model Number: FWG-402R-60
-
2-1/2
Model Number: FWG-402R-76
-
3
Model Number: FWG-402R-88
-
4
Model Number: FWG-402R-114
-
6
Model Number: FWG-402R-165
-
8
Model Number: FWG-402R-219
