Dixon 2" High Volume FloMAX Diesel Fuel Cap for Receiver
Out of stock

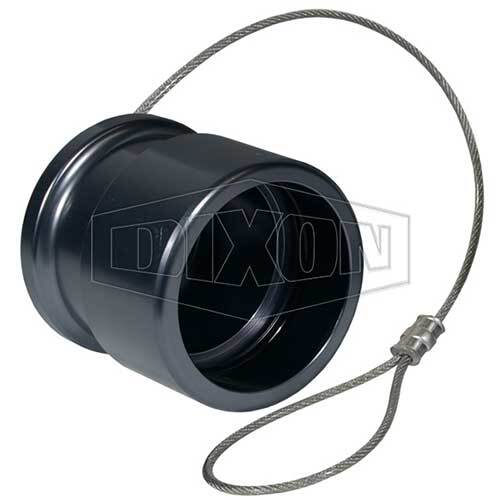

This Dixon cap is the replacement cap for the 2" high-flow FloMAX diesel fuel receiver (FRX series). Its part number is FRXCAP, "Cap to suit high-flow receiver". The receiver range is made from anodised aluminium with a removable stainless steel sleeve and an O-ring sealed aluminium cap, it is tested to 1500 litres per minute.
The receivers have a 2" female NPT thread; the cap itself has no thread listed.
Where this product is used
- Closing the 2" high-flow diesel fuel receiver on construction, mining, forestry and agricultural equipment between fills
- Replacing a lost or worn cap on an FRX or FRX-C receiver
Features
- O-ring sealed aluminium cap for the 2" high-flow receiver
- Receiver range: anodised aluminium with removable stainless steel sleeve
- Receiver range tested to 1500 litres per minute
- Description: Cap to suit high-flow receiver
Key specifications
| Specification | Detail |
|---|---|
| Brand | Dixon |
| Description | Cap to suit high-flow receiver |
| Fits | 2" high-flow diesel fuel receivers FRX and FRX-C |
| Cap | O-ring sealed aluminium cap |
| Receiver flow | Tested to 1500 litres per minute |
| Receiver thread | 2" female NPT |
Choosing the right option
This cap suits the 2" high-flow FRX receivers only. The smaller standard FR receivers use the FR-CAP, and the engine oil receivers use ERS-CAP, so check the receiver part number before you order.
Related FloMAX products: Dixon Service Kit FloMAX Diesel Fuel Nozzle Replacement Part FN600-K1, Dixon FloMAX Standard Series Engine Oil Receiver with Cap and Dixon Rebuild Tool FloMAX Diesel Fuel Nozzle Replacement Part FN600-K0.
