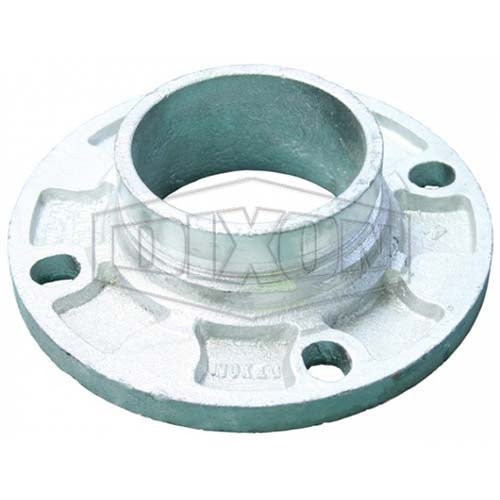

Dixon Roll grooved flange adaptor
Regular price
$67.67
Sale price
$67.67
Regular price
Inc. GST
Available
It has a roll grooved end and a flange end.
Where this product is used
- Connecting 100mm roll grooved pipe to a Table D flange
- Adapting a roll grooved pipeline to a flanged valve, pump or fitting drilled to Table D
Features
- Galvanised ductile iron to ASTM A536
- Table D flange pattern, 100mm nominal bore
- Pipe OD 114.3mm, face-to-face 60mm
- Table D drilling: four M16 bolts in 18mm holes, 178mm PCD
- Dixon model number 321G
Key specifications
| Specification | Detail |
|---|---|
| Brand | Dixon |
| Part number | FWG-FA-114D |
| Material | Ductile iron to ASTM A536 |
| Finish | Galvanised |
| Size | 100mm NB |
| Pipe OD | 114.3mm |
| Flange pattern | Table D |
| Face-to-face | 60mm |
| Flange OD / PCD | 215mm / 178mm |
| Flange drilling | 4 x M16, 18mm holes |
| Model number | 321G |
Choosing the right option
Check the mating flange before you order. Confirm that your pipe is roll grooved to suit a 114.3mm OD, and use appropriate gaskets and bolts for your flange.
Related Dixon products: Dixon Roll Grooved Flange Adaptor, Dixon Roll Grooved Rigid Coupling - Galvanised and Dixon EPDM Gasket For Roll Grooved Coupling.
