Dixon 90° reducing elbow, 1 x 3/4
Available

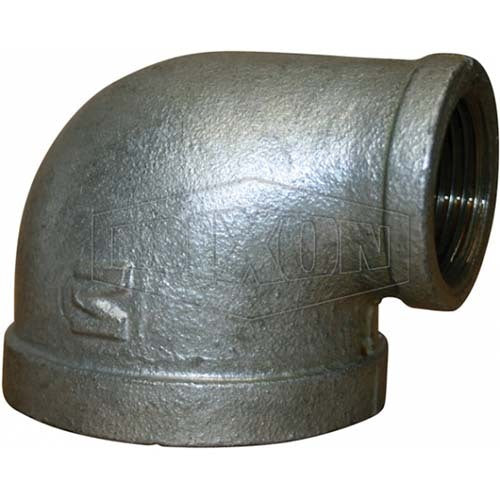

This Dixon 90° reducing elbow turns a pipe run through a right angle and steps it down in size at the same time. Both ends are female BSP, with a larger thread on one leg and a smaller one on the other. The galvanised malleable iron BSP fittings are ISO 5922 malleable cast iron, hot dip galvanised to ISO 1461, with ISO 7-1 pipe threads, for general low-pressure air and water at a working pressure of 150 PSI (about 10 bar).
Where this product is used
- Changing direction and size in one fitting in air and water pipework
- Corners where a larger header drops to a smaller branch or equipment connection
Features
- 90° reducing elbow, female x female
- End connection: Female x female BSP, different sizes
- Body: ISO 5922 malleable cast iron, hot dip galvanised to ISO 1461
- Working pressure: 150 PSI (about 10 bar), for general low-pressure air and water
- Sizes: 3/4" x 1/2" to 2" x 1-1/2" (17 combinations)
Key specifications
| Specification | Detail |
|---|---|
| Brand | Dixon |
| End connection | Female x female BSP, different sizes |
| Body material | ISO 5922 malleable cast iron |
| Coating | Hot dip galvanised, ISO 1461 |
| Thread standard | ISO 7-1 pipe threads (BSP) |
| Design | Generally in accordance with AS3673, slight variations may occur where the manufacturer's dimensions are used |
| Working pressure | 150 PSI (about 10 bar) |
| Application | General low-pressure air and water |
Choosing the right option
Read the size as large x small: 1" x 1/2" has a 1" female thread on one leg and a 1/2" female thread on the other. Both legs need a male BSP thread. BSP threads do not mate with NPT or metric threads, so confirm the thread on every mating part before you order.
Related Dixon fittings: Dixon 90° Screwed Elbow F/F Galvanised Malleable Iron, Dixon Screwed Reducing Socket BSP Galvanised Malleable Iron and Dixon Screwed Reducing Hex Bush Male x Female BSP Galvanised Malleable Iron.
| Option | Part number | SKU |
|---|---|---|
| 3/4 x 1/2 | FMG-EFF-20-15 | A0069573 |
| 1 x 3/8 | FMG-EFF-25-10 | A0069575 |
| 1 x 1/2 | FMG-EFF-25-15 | A0069576 |
| 1 x 3/4 | FMG-EFF-25-20 | A0069577 |
| 1-1/4 x 3/8 | FMG-EFF-32-10 | A0069579 |
| 1-1/4 x 1/2 | FMG-EFF-32-15 | A0069580 |
| 1-1/4 x 3/4 | FMG-EFF-32-20 | A0069581 |
| 1-1/4 x 1 | FMG-EFF-32-25 | A0069582 |
| 1-1/2 x 1/2 | FMG-EFF-40-15 | A0069584 |
| 1-1/2 x 3/4 | FMG-EFF-40-20 | A0069585 |
| 1-1/2 x 1 | FMG-EFF-40-25 | A0069586 |
| 1-1/2 x 1-1/4 | FMG-EFF-40-32 | A0069587 |
| 2 x 1/2 | FMG-EFF-50-15 | A0069598 |
| 2 x 3/4 | FMG-EFF-50-20 | A0069599 |
| 2 x 1 | FMG-EFF-50-25 | A0069600 |
| 2 x 1-1/4 | FMG-EFF-50-32 | A0069601 |
| 2 x 1-1/2 | FMG-EFF-50-40 | A0069602 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Dixon 90° Reducing Screwed Elbow F/F Galvanised Malleable Iron: 1 x 3/4
SKU: A0069577 | Model: FMG-EFF-25-20
Dixon FMG-EFF-25-20: 90° reducing elbow, 1 x 3/4.
