Dixon Reducing socket, 1-1/4 x 1/2
Available

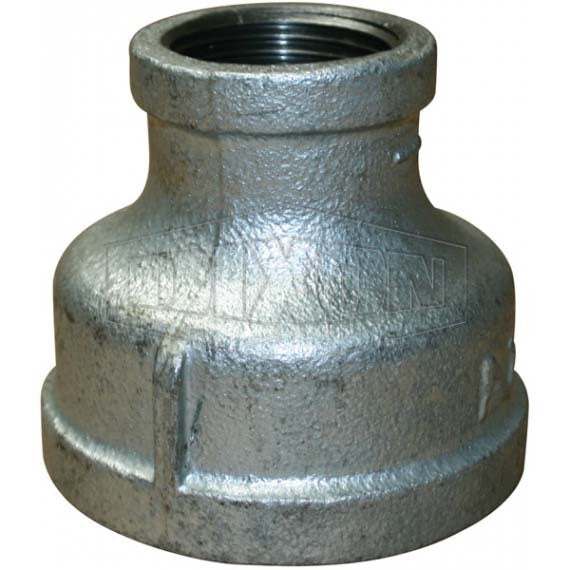

This Dixon reducing socket has female BSP threads at both ends, one larger and one smaller, and joins two male-threaded pipes of different sizes. It is galvanised malleable iron. There are 28 size combinations, from 3/8" x 1/4" to 4" x 3".
The galvanised malleable iron BSP fittings are ISO 5922 malleable cast iron, hot dip galvanised to ISO 1461, with ISO 7-1 pipe threads, for general low-pressure air and water at a working pressure of 150 PSI (about 10 bar).
Where this product is used
- Joining two pipes of different sizes in air and water pipework
- Stepping a line down in size at a branch, pump connection or equipment inlet
Features
- Reducing socket, female BSP both ends
- End connection: Female BSP both ends, different sizes
- Body: ISO 5922 malleable cast iron, hot dip galvanised to ISO 1461
- Working pressure: 150 PSI (about 10 bar), for general low-pressure air and water
- Sizes: 3/8" x 1/4" to 4" x 3" (28 combinations)
Key specifications
| Specification | Detail |
|---|---|
| Brand | Dixon |
| End connection | Female BSP both ends, different sizes |
| Body material | ISO 5922 malleable cast iron |
| Coating | Hot dip galvanised, ISO 1461 |
| Thread standard | ISO 7-1 pipe threads (BSP) |
| Design | Generally in accordance with AS3673, slight variations may occur where the manufacturer's dimensions are used |
| Working pressure | 150 PSI (about 10 bar) |
| Application | General low-pressure air and water |
Choosing the right option
Read the size as large x small: 2" x 1" has a 2" female thread on one end and a 1" female thread on the other. Both ends are female, so each side needs a male BSP thread. For a male thread on the smaller side, use a reducing bush instead. BSP threads do not mate with NPT or metric threads, so confirm the thread on every mating part before you order.
Related Dixon fittings: Dixon Screwed Reducing Hex Bush Male x Female BSP Galvanised Malleable Iron, Dixon Screwed Reducing Hex Nipple BSP Galvanised Malleable Iron and Dixon 90° Reducing Screwed Elbow F/F Galvanised Malleable Iron.
| Option | Part number | SKU |
|---|---|---|
| 1/2 x 3/8 | FMG-SOC-15-10 | A0069696 |
| 1/2 x 1/4 | FMG-SOC-15-8 | A0069698 |
| 1 x 3/8 | FMG-SOC-25-10 | A0069703 |
| 1 x 1/2 | FMG-SOC-25-15 | A0069704 |
| 1 x 3/4 | FMG-SOC-25-20 | A0069705 |
| 1-1/4 x 1/2 | FMG-SOC-32-15 | A0069708 |
| 1-1/4x 3/4 | FMG-SOC-32-20 | A0069709 |
| 1-1/4 x 1 | FMG-SOC-32-25 | A0069710 |
| 1-1/2 x 1/2 | FMG-SOC-40-15 | A0069712 |
| 1-1/2 x 3/4 | FMG-SOC-40-20 | A0069713 |
| 1-1/2 x 1 | FMG-SOC-40-25 | A0069714 |
| 1-1/2 x 1-1/4 | FMG-SOC-40-32 | A0069715 |
| 2 x 1/2 | FMG-SOC-50-15 | A0069717 |
| 2 x 3/4 | FMG-SOC-50-20 | A0069718 |
| 2 x 1 | FMG-SOC-50-25 | A0069719 |
| 2 x 1-1/4 | FMG-SOC-50-32 | A0069720 |
| 2 x 1-1/2 | FMG-SOC-50-40 | A0069721 |
| 2-1/2 x 1 | FMG-SOC-65-25 | A0069723 |
| 2-1/2 x 1-1/2 | FMG-SOC-65-40 | A0069725 |
| 2-1/2 x 2 | FMG-SOC-65-50 | A0069726 |
| 3/8 x 1/4 | FMG-SOC-10-8 | A0069694 |
| 3/4 x 3/8 | FMG-SOC-20-10 | A0069700 |
| 3/4 x 1/2 | FMG-SOC-20-15 | A0069701 |
| 3 x 2 | FMG-SOC-80-50 | A0069729 |
| 3 x 2-1/2 | FMG-SOC-80-65 | A0069730 |
| 4 x 2 | FMG-SOC-100-50 | A0069690 |
| 4 x 2-1/2 | FMG-SOC-100-65 | A0069691 |
| 4 x 3 | FMG-SOC-100-80 | A0069692 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Dixon Screwed Reducing Socket BSP Galvanised Malleable Iron: 1-1/4 x 1/2
SKU: A0069708 | Model: FMG-SOC-32-15
Dixon FMG-SOC-32-15: Reducing socket, 1-1/4 x 1/2.
