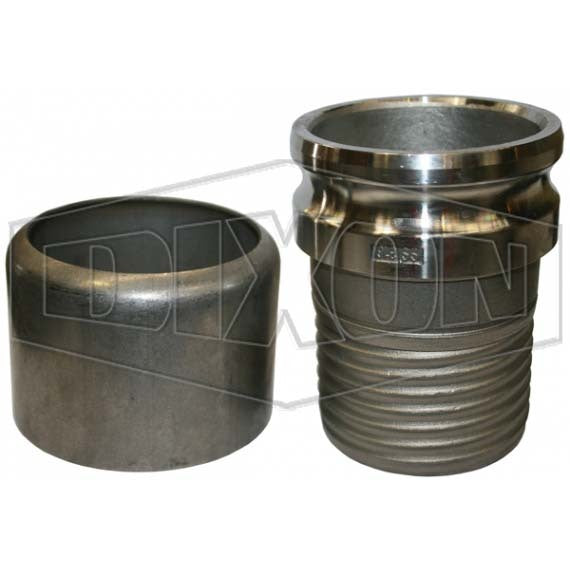

Dixon Aluminium scroll tail camlock, 2" (50mm)

This Dixon scroll tail camlock is a Type E adaptor in aluminium, with a spiral (scroll) hose tail made to suit composite hose. It comes in 5 sizes, from 1-1/2" (40mm) to 4" (100mm). The scroll tail camlock fittings and ferrules are made for composite hose, with the spiral tail matched to the pitch of the wire on the hose, for applications that include water, oil and fuel, powders and adhesives.

Nitrile Buna-N rubber seals are standard. The working pressure of a finished assembly depends on the composite hose, the ferrule and the coupling, assembly pressures vary with the size, hose, fittings and clamps selected. Camlock couplings are designed for use with liquids and must not be used in compressed air or steam applications. Polypropylene and nyglass fittings should not be mixed with aluminium fittings.

Where this product is used

• Terminating composite hose with a camlock coupling where a scroll tail suits the wire pitch of the hose
• Transfer of water, oil and fuel, powders and adhesives through composite hose
• Connecting composite hose to a camlock coupler of the same size

Features

• Scroll tail Type E: adaptor x hose tail
• Spiral tail and ferrule for composite hose
• Nitrile Buna-N rubber seals are standard in the series
• Sizes in store: 1-1/2" (40mm), 2" (50mm), 2-1/2" (65mm), 3" (80mm), 4" (100mm)

Key specifications

Choosing the right option

Type E is an adaptor with a hose tail. Match the size to your composite hose and the spiral pitch of its wire, and use the ferrule that goes with this fitting. The working pressure of a finished assembly depends on the hose, the ferrule and the coupling. It connects to a Type B, C or D coupler of the same size. Do not mix aluminium fittings with polypropylene or nyglass. Do not use the fitting for compressed air or steam.

Related Dixon products: Dixon 316 Stainless Steel Scroll Tail Camlock Type E Adaptor x Hose Shank W/ Ferrule, Dixon Aluminium Scroll Tail Camlock Type C Coupler x Hose Shank W/ Ferrule and Dixon Composite Petrol & Oil Medium Duty Suction & Delivery Hose.
