Dixon Composite petrol and oil hose, 25mm x 5 m
Out of stock

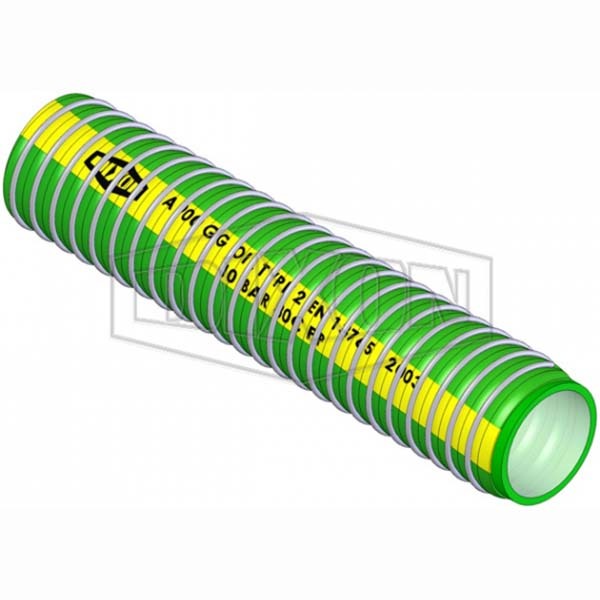

This is the Dixon Composite Petrol & Oil Medium Duty Suction & Delivery Hose.
This Dixon anti-static composite hose is made for suction and discharge on plant equipment, road tankers and rail tankers, for a wide range of hydrocarbons with 100% aromatic resistance. It has a white composite tube, a green composite cover, polypropylene film and fabric reinforcement and galvanised steel inner and outer wires, and it is mandrel built, lightweight and flexible. The hose is constructed to AS 2683:2000 Type 1 Grade 3 and EN 13765:2018 Type 3.
It is rated at 150 PSI (10 bar) working pressure, 750 PSI (50 bar) burst and 0.9 bar vacuum for temperatures from -30 to 80°C. It comes in 25, 32, 50 and 100mm hose in 5 m and 40 m lengths.
Where this product is used
- Suction and discharge on plant equipment, road tankers and rail tankers
- Transfer of fuels and a wide range of hydrocarbons where 100% aromatic resistance is required
- Fuel depots and refineries
Features
- Tube: composite, white, cover: composite, green, polypropylene film and fabric reinforcement
- Inner and outer wire: galvanised steel, mandrel built
- Working pressure 150 PSI (10 bar), burst 750 PSI (50 bar), vacuum 0.9 bar
- Temperature range -30 to 80°C
Key specifications
| Specification | Detail |
|---|---|
| Brand | Dixon |
| Tube | Composite, white |
| Cover | Composite, green |
| Reinforcement | Polypropylene film and fabric |
| Wires | Galvanised steel, inner and outer |
| Standards | AS 2683:2000 Type 1 Grade 3, EN 13765:2018 Type 3 |
| Working pressure | 150 PSI (10 bar) |
| Burst pressure | 750 PSI (50 bar) |
| Vacuum | 0.9 bar |
| Temperature | -30 to 80°C |
| Sizes | 25, 32, 50, 100mm |
Choosing the right option
Check the fuel or chemical against the hose materials and aromatic resistance, and have end fittings made up by a competent person to the hose manufacturer's instructions.
The 5 m and 40 m lengths (part numbers ending 040 for 40 m) are option names.
Related Dixon hose: Dixon Composite Petrol & Oil Suction & Delivery Light Duty Hose, Dixon Composite Vapour Recovery Hose and Dixon Rubber Petrol & Oil Suction & Delivery Hose.
| Option | Part number | SKU |
|---|---|---|
| 25 / 5 | CODE1000025 | A0069278CUT |
| 25 / 40 | CODE1000025040 | A0069278C40 |
| 32 / 5 | CODE1000032 | A0069279CUT |
| 32 / 40 | CODE1000032040 | A0069279C40 |
| 50 / 5 | CODE1000050 | A0069281CUT |
| 50 / 40 | CODE1000050040 | A0069281C40 |
| 100 / 5 | CODE1000100 | A0069283CUT |
| 100 / 40 | CODE1000100040 | A0069283C40 |
Product details
| Model | CODE1000025 |
|---|---|
| Dixon part number | CODE1000025 |
| Size | 25mm x 5 m |
| Working pressure | 150 PSI (10 bar) |
| Hose ID | 25.4mm |
| Burst pressure | 750 PSI (50 bar) |
| Vacuum | 0.9 bar |
| Bend radius | 100mm |
