Dixon Composite petrol and oil hose, 50mm x 5 m
Out of stock

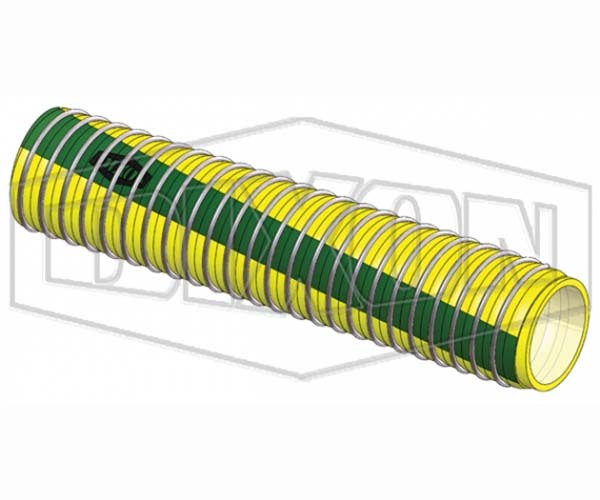

This is the Dixon Composite Petrol & Oil Suction & Delivery Light Duty Hose.
This Dixon anti-static composite hose is made for suction and discharge on plant equipment, road tankers and rail tankers, for a wide range of hydrocarbons with 100% aromatic resistance. It has a white composite tube, a yellow composite cover, polypropylene film and fabric reinforcement, galvanised steel outer wire and aluminium inner wire, and it is mandrel built, lightweight and flexible. The hose is constructed to AS 2683:2000 Type 1 Grade 3 and EN 13765:2018 Type 3.
It is rated at 100 PSI (7 bar) working pressure, 500 PSI (35 bar) burst and 0.9 bar vacuum for temperatures from -30 to 80°C. It comes in 50, 76 and 100mm hose in 5 m and 40 m lengths.
Where this product is used
- Suction and discharge on plant equipment, road tankers and rail tankers
- Transfer of a wide range of hydrocarbons where 100% aromatic resistance is required
Features
- Tube: composite, white, cover: composite, yellow, polypropylene film and fabric reinforcement
- Outer wire: galvanised steel, inner wire: aluminium, mandrel built
- Working pressure 100 PSI (7 bar), burst 500 PSI (35 bar), vacuum 0.9 bar
- Temperature range -30 to 80°C
Key specifications
| Specification | Detail |
|---|---|
| Brand | Dixon |
| Tube | Composite, white |
| Cover | Composite, yellow |
| Reinforcement | Polypropylene film and fabric |
| Outer wire | Galvanised steel |
| Inner wire | Aluminium |
| Standards | AS 2683:2000 Type 1 Grade 3, EN 13765:2018 Type 3 |
| Working pressure | 100 PSI (7 bar) |
| Burst pressure | 500 PSI (35 bar) |
| Vacuum | 0.9 bar |
| Temperature | -30 to 80°C |
| Sizes | 50, 76, 100mm |
Choosing the right option
Check the fuel or chemical against the hose materials and the aromatic resistance, and have end fittings made up by a competent person to the hose manufacturer's instructions. Check the bend radius for your set-up.
The 5 m and 40 m lengths (part numbers ending 040 for 40 m) are option names.
Related Dixon hose: Dixon Composite Petrol & Oil Medium Duty Suction & Delivery Hose, Dixon Composite Vapour Recovery Hose and Dixon Rubber Petrol & Oil Suction & Delivery Hose.
| Option | Part number | SKU |
|---|---|---|
| 50 / 5 | CODE1003050 | A0069284CUT |
| 50 / 40 | CODE1003050040 | A0069284C40 |
| 76 / 5 | CODE1003080 | A0069286CUT |
| 76 / 40 | CODE1003080040 | A0069286C40 |
| 100 / 5 | CODE1003100 | A0069287CUT |
| 100 / 40 | CODE1003100040 | A0069287C40 |
Product details
| Model | CODE1003050 |
|---|---|
| Dixon part number | CODE1003050 |
| Size | 50mm x 5 m |
| Working pressure | 100 PSI (7 bar) |
| Hose ID | 50.8mm |
| Burst pressure | 500 PSI (35 bar) |
| Vacuum | 0.9 bar |
| Bend radius | 150mm |
