Dixon CODEVRH100 100 mm x 5 m Composite Vapour Recovery Hose
Out of stock

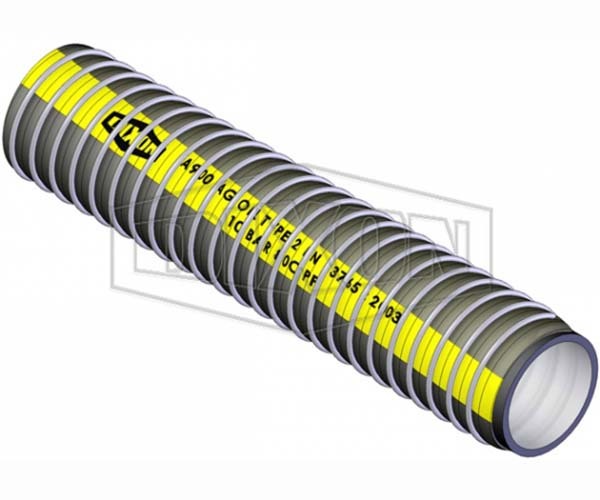

This Dixon anti-static composite hose is made for vapour recovery on a wide range of hydrocarbons, and Dixon says it has 100% aromatic resistance (manufacturer-stated). It has a white composite tube, polypropylene film and fabric reinforcement, galvanised steel inner and outer wires and a black composite cover, and it is mandrel built, lightweight and flexible (manufacturer-stated).
Dixon says the hose is built to AS 2683:2000 Type 1 Grade 3 and EN 13765:2018 Type 3 (manufacturer-stated). It is rated at 70 PSI (5 bar) working pressure, 350 PSI (25 bar) burst and 0.9 bar vacuum for temperatures from -30 to 80 degrees C (manufacturer-stated). The store lists 100 mm ID in 5 m and 40 m lengths.
Where this product is used
- Vapour recovery on a wide range of hydrocarbons (manufacturer-stated).
- Lines where a lightweight, flexible, anti-static hose is needed (manufacturer-stated).
Features
- Tube: composite, white; cover: composite, black; polypropylene film and fabric reinforcement (manufacturer-stated)
- Inner and outer wire: galvanised steel; mandrel built (manufacturer-stated)
- Working pressure 70 PSI (5 bar), burst 350 PSI (25 bar), vacuum 0.9 bar (manufacturer-stated)
- Temperature range -30 to 80 degrees C (manufacturer-stated)
- Dixon lists AS 2683:2000 Type 1 Grade 3 and EN 13765:2018 Type 3 (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Tube | Composite, white |
| Cover | Composite, black |
| Reinforcement | Polypropylene film and fabric |
| Wires | Galvanised steel, inner and outer |
| Standards | AS 2683:2000 Type 1 Grade 3, EN 13765:2018 Type 3 (manufacturer-stated) |
| Working pressure | 70 PSI (5 bar) |
| Burst pressure | 350 PSI (25 bar) |
| Vacuum | 0.9 bar |
| Temperature | -30 to 80 degrees C |
| Hose ID (catalogue) | 101.6 mm |
| Bend radius | 300 mm |
| Catalogue weight | 3.10 kg/m |
Key specifications
| Dixon part number | Size | Length | Catalogue ID (mm) | Bend radius (mm) | Weight (kg/m) |
|---|---|---|---|---|---|
| CODEVRH100 | 100 mm | 5 m | 101.6 | 300 | 3.10 |
| CODEVRH100040 | 100 mm | 40 m | 101.6 | 300 | 3.10 |
Figures are from the CODEVRH table in Dixon's Composite Hose and Fittings catalogue, which lists one part number (CODEVRH100) with no pack length. The 5 m and 40 m lengths are store options. The store size 100 mm is the 101.6 mm catalogue size.
Selecting the right option
Check the hose, end fittings and any vapour recovery couplings suit the fuels and the pressure on your system, and have assemblies made up by a competent person. Dixon lists a vapour recovery coupler for 4 in hose in Related products. For fuel and oil suction and discharge duty see the CODE1000 and CODE1003 composite hoses.
Related products
Related Dixon hose: Dixon Composite Petrol & Oil Suction & Delivery Light Duty Hose, Dixon Composite Petrol & Oil Medium Duty Suction & Delivery Hose, Dixon Conduct-A-Boss Vapour Recovery Coupler 4" Hose ID and Dixon Rubber Petrol & Oil Suction & Delivery Hose.
