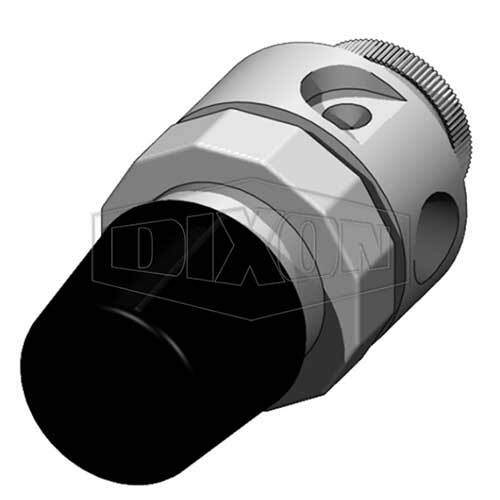

Dixon 05/040/01/014SS Anfo Loader 1/2" BSP Replacement Air Regulator 0-1000 kPa

This Dixon regulator is a 1/2 in BSP stainless steel air regulator for the Minsup® ANFO loader manifold. Dixon lists it as 05/040/01/014SS and shows it as reference 9 in the remote control manifold assembly (manufacturer-stated).

The store title gives the range as 0 to 1000 kPa; Dixon's catalogue lists the part as a "Regulator 12 mm (1/2 in) BSP stainless steel" without stating a range. The loader vessel is rated at a working pressure of 345 kPa and a design pressure of 690 kPa, so set the regulator for your loader (manufacturer-stated).

Where this product is used

• Controlling the air pressure in the manifold of a Minsup® ANFO loader, which Dixon says is pressurised to a pre-determined discharge pressure so the discharge rate can be varied (manufacturer-stated).
• Replacing the regulator in the remote control manifold assembly.

Features

• 1/2 in BSP stainless steel regulator (manufacturer-stated)
• Reference 9 in the remote control manifold assembly parts list (manufacturer-stated)
• Store title range: 0 to 1000 kPa (manufacturer-stated)

Key specifications

Selecting the right option

Check the thread (1/2 in BSP) and the regulator range against your loader before ordering. The pressure gauge in the same manifold is a separate part, and Dixon lists a relief valve set to 690 kPa for the loader. Ask us if you want the regulator, gauge and relief valve matched.
