Dixon Anfo Loader Remote Control Diaphragm Valve Assembly
Available

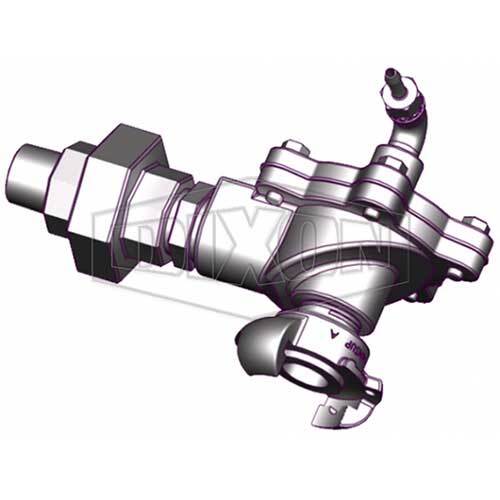

This Dixon assembly is the complete diaphragm valve assembly for the Minsup® ANFO loader, 08/040/08/089 and shown as reference 22 in the ANFO Pressure Loader spare parts list. Dixon's exploded view lists six parts in the assembly: a 3/16" x 1/4" stainless steel BSP hose tail, an 8mm stainless steel male x female 90 degree elbow, the 20mm (3/4") diaphragm valve, a 20mm (3/4") Minsup® stainless steel A-type fitting, a 20mm (3/4") BSP stainless steel hex nipple and a 20mm (3/4") BSP female x female stainless steel union. Minsup® manifold assemblies are built from stainless steel components and describes them as suited to preventing the formation of tetra-ammine copper nitrate (TACN).
Where this product is used
- Replacing a complete diaphragm valve assembly on a Minsup® ANFO loader
- Dixon also offers a diaphragm valve in its dual remote control kit (08/040/08/129), the dual control valve (DRC) operates the actuated loading valve and the diaphragm operated venturi
Features
- Complete diaphragm valve assembly for Minsup® ANFO loaders
- Stainless steel components throughout the assembly
- Includes a 20mm (3/4") diaphragm valve, A-type fitting, nipple and union
- Reference 22 in the ANFO Pressure Loader spare parts list
Key specifications
| Specification | Detail |
|---|---|
| Brand | Dixon |
| Description | Diaphragm valve assembly, complete |
| Fits | Minsup® ANFO pressure loaders (reference 22) |
| Main valve | 20mm (3/4") diaphragm valve |
| Construction | Stainless steel components |
| Parts in assembly | Hose tail, 8mm elbow, diaphragm valve, A-type fitting, hex nipple, union |
Choosing the right option
Order this when you need the whole assembly. Dixon also offers a diaphragm valve with its dual remote control kit, so confirm that your loader has the dual control arrangement before ordering.
Related Dixon ANFO loader parts: Dixon Anfo Loader Spare Part Sub Assembly Hose Tail 3/16" x 1/4" BSP, Dixon Anfo Loader Dual Remote Control Valve Sub Assembly and Dixon Anfo Loader Remote Control Pilot Valve Assembly Stainless Steel.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Dixon Anfo Loader Remote Control Diaphragm Valve Assembly
SKU: A0157429 | Model: 08/040/08/089
Dixon 08/040/08/089: Complete diaphragm valve assembly.
