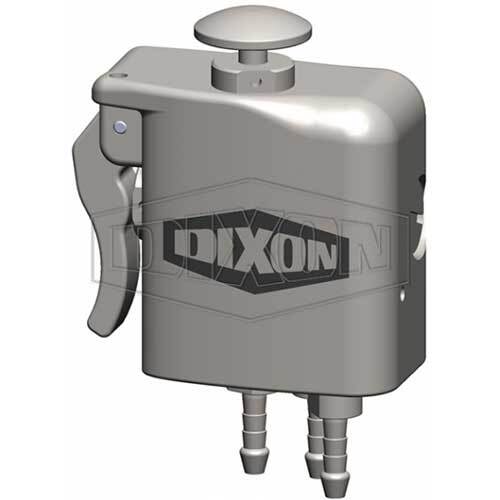

Dixon Anfo Loader Dual Remote Control Valve Sub Assembly
Out of stock
This Dixon dual control valve operates both the actuated loading valve and the diaphragm operated venturi on Minsup® ANFO loaders set up for remote control. It is DRC. The control valves allow single-hand operation, are suitable for contact with ANFO, and are made from stainless steel with a nitrile O-ring and steel spring, with a temperature of 80°C listed.
The dual valve is the version in the 08/040/08/129 remote control kit, which has a 50mm (2") shouldered outlet and a diaphragm valve.
Where this product is used
- Operating the actuated loading valve and the diaphragm operated venturi from one control on a Minsup® ANFO loader
- Replacing a worn or damaged dual remote control valve on a loader fitted with single or dual control valves
Features
- Dual control valve for the actuated loading valve and the diaphragm operated venturi
- Single-hand operation for operator comfort
- Suitable for contact with ANFO
- Stainless steel with nitrile O-ring and steel spring
- Temperature listed: 80°C
Key specifications
| Specification | Detail |
|---|---|
| Brand | Dixon |
| Description | Dual remote control valve sub assembly |
| Function | Operates the actuated loading valve and the diaphragm operated venturi |
| Material | Stainless steel with nitrile O-ring and steel spring |
| Temperature | 80°C |
| Kit | Used in remote control kit 08/040/08/129 (dual) |
Choosing the right option
Choose DRC if your loader has a dual control valve, and SRC if it has a single valve for the actuated loading valve only. The diaphragm valve assembly (08/040/08/089) sits with the dual arrangement.
Related Dixon ANFO loader parts: Dixon Anfo Loader Single Remote Control Valve Sub Assembly, Dixon Anfo Loader Remote Control Diaphragm Valve Assembly and Dixon Anfo Loader Remote Control Pilot Valve Assembly Stainless Steel.
