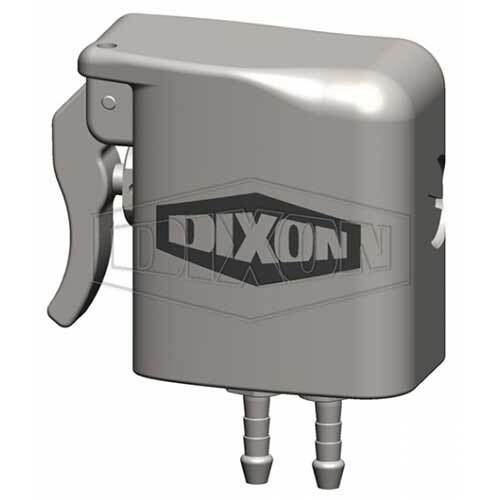

Dixon Anfo Loader Single Remote Control Valve Sub Assembly
Out of stock
This Dixon single control valve operates the actuated loading valve on Minsup® ANFO loaders that are set up for remote control. It is SRC. The control valves allow single-hand operation, are suitable for contact with ANFO, and are made from stainless steel with a nitrile O-ring and steel spring, with a temperature of 80°C listed.
The single valve is the version that comes in the 08/040/08/128 remote control kit, which has a 50mm (2") shouldered outlet.
Where this product is used
- Operating the actuated loading valve from a remote single control valve on a Minsup® ANFO loader
- Replacing a worn or damaged single remote control valve on a loader fitted with single or dual control valves
Features
- Single control valve used to operate the actuated loading valve
- Single-hand operation for operator comfort
- Suitable for contact with ANFO
- Stainless steel with nitrile O-ring and steel spring
- Temperature listed: 80°C
Key specifications
| Specification | Detail |
|---|---|
| Brand | Dixon |
| Description | Single remote control valve sub assembly |
| Function | Operates the actuated loading valve |
| Material | Stainless steel with nitrile O-ring and steel spring |
| Temperature | 80°C |
| Kit | Used in remote control kit 08/040/08/128 (single) |
Choosing the right option
Choose SRC if your loader has a single control valve and DRC if it has a dual valve, which also operates the diaphragm operated venturi. If you want the foot-operated version, Dixon also offers a separate foot control valve.
Related Dixon ANFO loader parts: Dixon Anfo Loader Dual Remote Control Valve Sub Assembly, Dixon Anfo Loader Remote Control Pilot Valve Assembly Stainless Steel and Dixon Anfo Loader Remote Control Oil Lubricator Sub Assembly.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Dixon Anfo Loader Single Remote Control Valve Sub Assembly
SKU: A0157440 | Model: SRC
Dixon SRC: Single remote control valve.
