Dixon API Dust Cap Nylon, Buna Seal
Out of stock

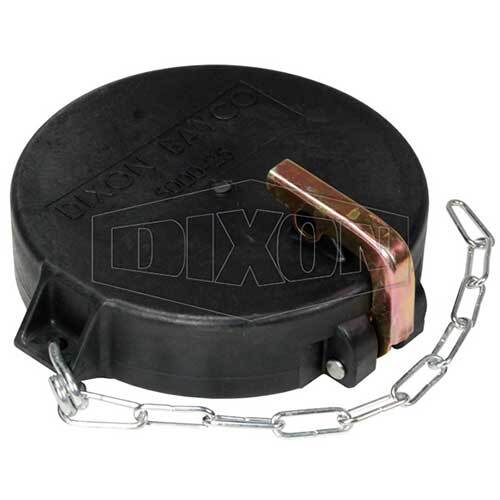

This Dixon 5000-25 is a nylon 100mm (4") API dust cap with a flat nitrile rubber (buna) seal. It is the nylon cap in Dixon's 100mm API dust cap range. Dixon also offers a flat seal spare (5000-25RK1) and an arm sub assembly (5000-25RK2) for the cap.
Where this product is used
- Closing off a 100mm (4") API valve or adaptor with a cap that can be secured with a padlock
- Hose and tanker outlets where a nylon cap is preferred over an aluminium cap
Features
- Nylon cap for 100mm (4") API connections
- Flat nitrile rubber (buna) seal
- Padlockable plated steel roller lever
- Spares listed: flat seal 5000-25RK1 and arm sub assembly 5000-25RK2
Key specifications
| Specification | Detail |
|---|---|
| Brand | Dixon |
| Description | API dust cap, nylon, with flat seal and padlockable arm |
| Size | 100mm (4") |
| Cap material | Nylon |
| Seal | Flat nitrile rubber (buna) |
| Arm | Plated steel padlockable roller lever |
| Spare parts | 5000-25RK1 (flat seal), 5000-25RK2 (arm sub assembly), 5205-RK4 (chain and S hook) |
Choosing the right option
This cap has a flat seal, not an O-ring, so it seals against the face of the valve nose; the aluminium 5000-24 seals with an O-ring. Choose the cap by the seal style you prefer and by whether you need the padlockable arm. The nylon cap suits fuels compatible with nitrile rubber, so check the product you handle against the seal material.
Related Dixon products: Dixon API Dust Cap with Cam Arm - Aluminium, Baylast Seal, Dixon API Dust Cap with Quick Release Lever - Aluminium and API Drop Adaptor - Aluminium.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Dixon API Dust Cap Nylon, Buna Seal
SKU: A0157361 | Model: 5000-25
Dixon 5000-25: Nylon API dust cap.
