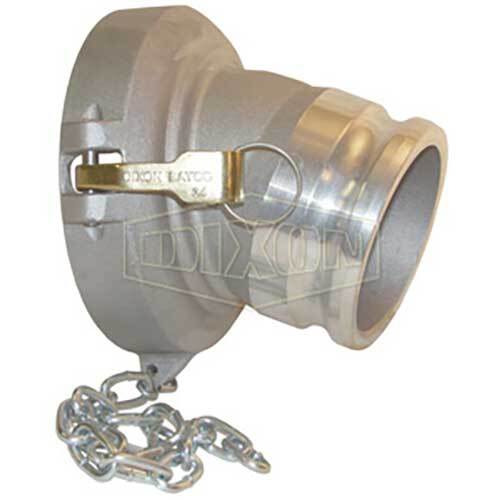

Dixon 4530 API Drop Adaptor, 3" (80 mm) Outlet - Aluminium, Without Sight Glass

This Dixon API drop adaptor has a 100 mm (4 in) API female connection that couples to a standard API valve, and a male Camlock outlet for the unloading hose. It is offered here in a 3 in (80 mm) outlet version (4530) and a 4 in (100 mm) outlet version (4540), both without a sight glass (manufacturer-stated).

Dixon describes both as 22.5 degree drop adaptors with a cast aluminium body, bronze Camlock arms and stainless steel pin and finger rings, sealed with a Baylast O-ring (manufacturer-stated). Dixon lists a maximum operating pressure of 75 PSI and a temperature range of -40 to 93 degrees C for these models (manufacturer-stated).

Where this product is used

• Connecting a road tanker's API valve to a 3 in (80 mm) or 4 in (100 mm) petroleum unloading hose (manufacturer-stated).
• Gravity unloading of gasoline and diesel, up to E100 and B100 biofuels (manufacturer-stated).
• Fitting directly to a standard API valve, which the adaptor is designed to couple to (manufacturer-stated).

Features

• 100 mm (4 in) API female connection, 3 in or 4 in male Camlock outlet (manufacturer-stated)
• Cast aluminium body with bronze Camlock arms (manufacturer-stated)
• Stainless steel pin and finger rings (manufacturer-stated)
• Baylast O-ring seal (manufacturer-stated)
• Maximum operating pressure 75 PSI; -40 to 93 degrees C (manufacturer-stated)
• Gasoline and diesel, up to E100 and B100 biofuels (manufacturer-stated)

Common specifications

Key specifications

Both part numbers have a 4 in API inlet. The size option (3 in or 4 in) is the outlet size.

Selecting the right option

The size option is the outlet: 4530 gives a 3 in (80 mm) Camlock outlet and 4540 gives a 4 in (100 mm) outlet, and both have the 4 in API inlet. Match the outlet to the Camlock fitting on your unloading hose. These versions have no sight glass. Dixon lists sight glass, FKM-sealed, flat-gasket and straight-drop versions under other part numbers (for example 4540SGV, 4540V and 4540ST), so check the seal and fuel compatibility before ordering. Dust caps for the API inlet are linked below.
