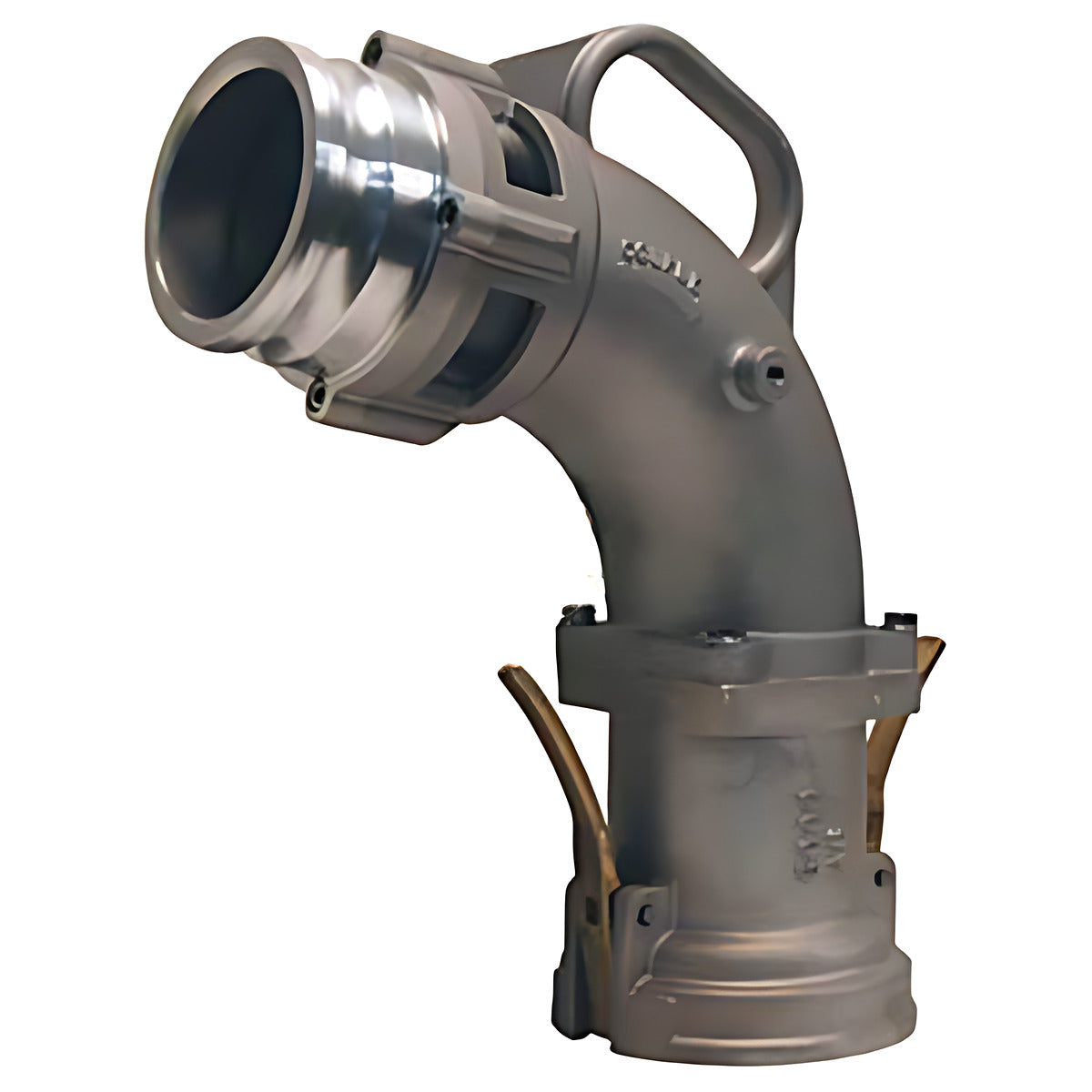

Dixon 6000ASA Side Seal Drop Elbow with 4" Adapter Inlet - Aluminum
Available
This Dixon side seal drop elbow comes with an adapter inlet already fitted, in a 100 mm (4 in) version (6000ASA) and an 80 mm (3 in) version (6000ASC). The elbow is aluminium, with an acrylic sight glass, nitrile buna seals and bronze arms (manufacturer-stated).
Dixon describes the elbow as modular and bolt-on, so it can be repaired in service, and lists it for connecting a tanker discharge hose to a side seal style fill collar. The fuels listed are gasoline, diesel, ULSD, E10, E20, E85, E100, B2 and B20 (manufacturer-stated).
Where this product is used
- Connecting a tanker discharge hose to a side seal style fill collar at a fuel station (manufacturer-stated).
- Unloading petrol, diesel and the ethanol and biodiesel blends listed above (manufacturer-stated).
- Fitting out a tanker discharge hose with an elbow that already has its inlet in place, in either the 80 mm (3 in) or 100 mm (4 in) inlet size.
Features
- Aluminium elbow with the adapter inlet fitted (manufacturer-stated)
- Inlet sizes: 100 mm (4 in) on 6000ASA and 80 mm (3 in) on 6000ASC (manufacturer-stated)
- Acrylic sight glass, nitrile buna seals and bronze arms (manufacturer-stated)
- Modular, bolt-on construction that is easy to repair (manufacturer-stated)
- Fuels listed: gasoline, diesel, ULSD, E10, E20, E85, E100, B2 and B20 (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Description | Side seal drop elbow with adapter inlet |
| Body material | Aluminium |
| Arms | Bronze |
| Sight glass | Acrylic |
| Seals | Nitrile buna |
| Inlet sizes | 100 mm (4 in) and 80 mm (3 in) |
| Fuel compatibility | Gasoline, diesel, ULSD, E10, E20, E85, E100, B2, B20 |
Key specifications
| Dixon part number | Inlet | Inlet size (mm) |
|---|---|---|
| 6000ASA | 4 in adapter | 100 |
| 6000ASC | 3 in adapter | 80 |
Selecting the right option
Choose the variant from the coupling on your discharge hose: 6000ASA has the 100 mm (4 in) adapter inlet and 6000ASC has the 80 mm (3 in) adapter inlet. If you want to choose the inlet separately, the elbow-only version is linked below. Dixon also lists an anti-spill sleeve version (6000ASAT) and a 4 in version with a locking ring (6000ASAL) (manufacturer-stated). Check the fill collar on the receiving tank before ordering, because Dixon lists this elbow for side seal style collars only (manufacturer-stated).
Related products
Related Dixon products: Dixon Side Seal Drop Elbow No Inlet - Aluminum and API Drop Adaptor - Aluminium.
